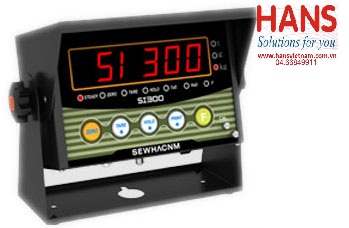

Màn hình hiển thị đa năng Sewhacnm SI300

0₫

Nhà Sản Xuất Sewhacnm
Mã Sản Phẩm SI300

Màn hình hiển thị đa năng Sewhacnm SI300

Model: SI300

Hãng sản xuất: Sewhacnm

Thông số kỹ thuật:

Industrial Scale (Truck, Animal, Platform, Tank etc)
Micro Din Size
High Resolution
RS232C & 485 Selectable interface
Free voltage (AC100V~AC240V, 50/60Hz)
Hold Function Mode(Sample/Peak/Average)
Specification
ANALOG PART	Input Sensitivity	Min. 0.1㎶ / Digit
	Load cell Excitation	+5V DC
	Non-Linearity	0.001% of Full Scale
	Max.Input signal	±3.2mV
	A/D Sampling	Max 60 time/sec, Sigma-Delta
	Resolution	Internal : 1,000,000 External : 1/20,000
DISPLAY PART	Main Display	7 segment, 6digit Orange FND, Letter size : 1inch
	Under Zero	Minus(-) display
GENERAL PART	Power Supply	Power Supply Free Voltage (AC100V ~ AC 240V , 50/60Hz)
	Operating Condition	Temperature : -10℃ ~ +40℃
		Humidity : under 85% RH
	Size/Weight	(W)236 x(H)170 x(D)122 mm / Gross 1.8kg
	External Input	X
	Relay output	X
	Communication	standard Built-in
		RS232C & Current Loop

Màn hình hiển thị đa năng Sewhacnm SI300

Model: SI300

Hãng sản xuất: Sewhacnm

Thông số kỹ thuật:

Industrial Scale (Truck, Animal, Platform, Tank etc)
Micro Din Size
High Resolution
RS232C & 485 Selectable interface
Free voltage (AC100V~AC240V, 50/60Hz)
Hold Function Mode(Sample/Peak/Average)
Specification
ANALOG PART	Input Sensitivity	Min. 0.1㎶ / Digit
	Load cell Excitation	+5V DC
	Non-Linearity	0.001% of Full Scale
	Max.Input signal	±3.2mV
	A/D Sampling	Max 60 time/sec, Sigma-Delta
	Resolution	Internal : 1,000,000 External : 1/20,000
DISPLAY PART	Main Display	7 segment, 6digit Orange FND, Letter size : 1inch
	Under Zero	Minus(-) display
GENERAL PART	Power Supply	Power Supply Free Voltage (AC100V ~ AC 240V , 50/60Hz)
	Operating Condition	Temperature : -10℃ ~ +40℃
		Humidity : under 85% RH
	Size/Weight	(W)236 x(H)170 x(D)122 mm / Gross 1.8kg
	External Input	X
	Relay output	X
	Communication	standard Built-in
		RS232C & Current Loop
