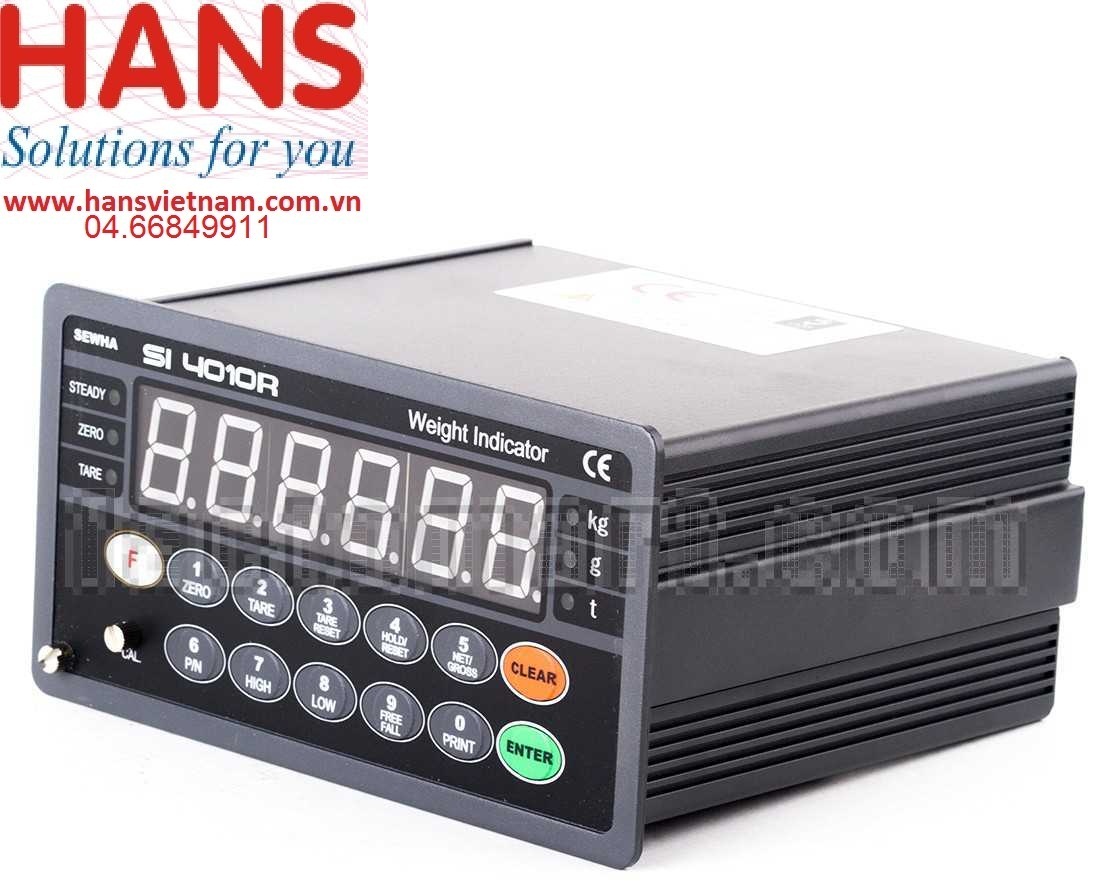

Màn hình hiển thị đa năng Sewhacnm SI4010R

0₫

Nhà Sản Xuất Sewhacnm
Mã Sản Phẩm SI4010R

Màn hình hiển thị đa năng Sewhacnm SI4010R

Model: SI4010R

Hãng sản xuất: Sewhacnm

Thông số kỹ thuật:

Industrial Scale / Simple Voulume Hopper Application
External Input : 4pcs Input Built-in
RS232C & Current Loop Standard Built-in
Hold Function(Sample/Peak/Average Hold)
Large Display View(1.0inch)
Max 2ea option Extend
Specification
ANALOG PART	Input Sensitivity	Min. 0.2㎶ / Digit
	Load cell Excitation	DC 10V (-5V~+5V)
	Non-Linearity	0.005% of Full Scale
	Input signal	Max 3.2mV/V
	A/D Sampling	Max 500 time/sec, Sigma-Delta
	Resolution	Internal : 1/520,000 (19bit) External : 1/20,000
DISPLAY PART	Main Display	7 segment, 6digit Red FND, Letter size : 25.4(H)mm
	2Ø Red LED	Left : STEADY, ZERO, TARE
	2Ø Red LED	Right : Kg, g, t
GENERAL PART	Power Supply	AC110/220V, 50/60Hz
	Operating Condition	Temperature : -10℃ ~ +40℃ Humidity : under 85% RH
	Size/Weight	200(L) ×105(W) ×165mm(D)/3.0kg Cutting size : 188(L) ×94mm(H)
	Communication	RS232C / Current Loop standard Built-in
	External Input	4EA
	Relay output	NONE
OPTION PART (Max 2EA)	No.1	Parallel Printer Interface
	No.2	Analog Output 0~10V
	No.3	Analog Output 4~20mA
	No.4	Serial interface RS232C / 422 / 485
	No.5	BCD Input (to Change P/N)
	No.6	BCD Output
	No.7	Ethernet

Màn hình hiển thị đa năng Sewhacnm SI4010R

Model: SI4010R

Hãng sản xuất: Sewhacnm

Thông số kỹ thuật:

Industrial Scale / Simple Voulume Hopper Application
External Input : 4pcs Input Built-in
RS232C & Current Loop Standard Built-in
Hold Function(Sample/Peak/Average Hold)
Large Display View(1.0inch)
Max 2ea option Extend
Specification
ANALOG PART	Input Sensitivity	Min. 0.2㎶ / Digit
	Load cell Excitation	DC 10V (-5V~+5V)
	Non-Linearity	0.005% of Full Scale
	Input signal	Max 3.2mV/V
	A/D Sampling	Max 500 time/sec, Sigma-Delta
	Resolution	Internal : 1/520,000 (19bit) External : 1/20,000
DISPLAY PART	Main Display	7 segment, 6digit Red FND, Letter size : 25.4(H)mm
	2Ø Red LED	Left : STEADY, ZERO, TARE
	2Ø Red LED	Right : Kg, g, t
GENERAL PART	Power Supply	AC110/220V, 50/60Hz
	Operating Condition	Temperature : -10℃ ~ +40℃ Humidity : under 85% RH
	Size/Weight	200(L) ×105(W) ×165mm(D)/3.0kg Cutting size : 188(L) ×94mm(H)
	Communication	RS232C / Current Loop standard Built-in
	External Input	4EA
	Relay output	NONE
OPTION PART (Max 2EA)	No.1	Parallel Printer Interface
	No.2	Analog Output 0~10V
	No.3	Analog Output 4~20mA
	No.4	Serial interface RS232C / 422 / 485
	No.5	BCD Input (to Change P/N)
	No.6	BCD Output
	No.7	Ethernet
