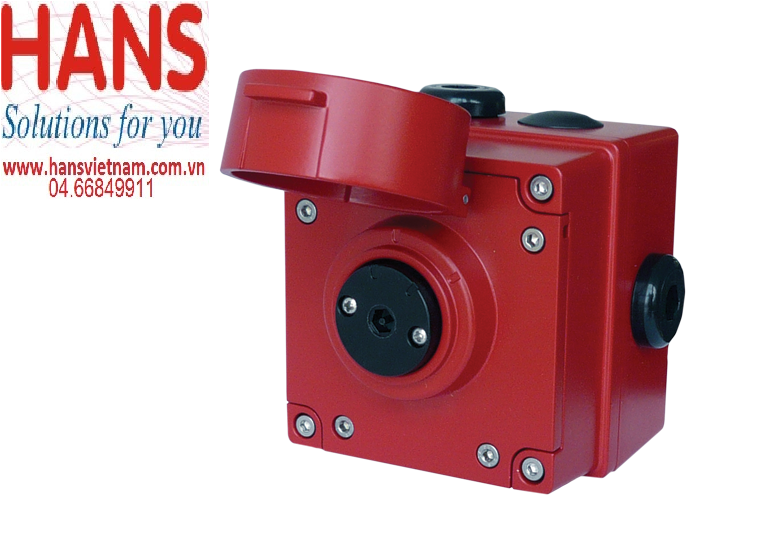

Manual call point Gastron BExCP3A-PT/BExCP3B

0₫

Nhà Sản Xuất Gastron
Mã Sản Phẩm BExCP3A-PT/BExCP3B

Manual call point Gastron BExCP3A-PT/BExCP3B

Model: BExCP3A-PT/BExCP3B

Hãng sản xuất: Gastron

Thông số kỹ thuật:

Ambient	Ta = -40°C to +55°C(+50°C for BExCP3B)
Ingress protection	IP66
Housing material	Marine grade copper free LM6 Aluminium
Housing finish	Phosphated & powder coated finish: anti-corrosion
Colour	RAL3000 Red (others available on request)
Cable entries	2 x M20 clearance top and 1 x M20 clearance side. Back box can be rotated to give 2 x bottom and 1 x side entries
Stopping plugs	2 x Ex e nylon plugs as standard Brass and stainless steel plugs optional
Terminals	6 x 4.0mm² cables
BExCP3A-PT	II 2G Ex e d IIC T6 Gb
	II 2D Ex t IIIC T60°C Db
	IP66
BExCP3B-PT	II 2G Ex e d mb IIC T4 Gb
	II 2D Ex t IIIC T70°C Db
	IP66
