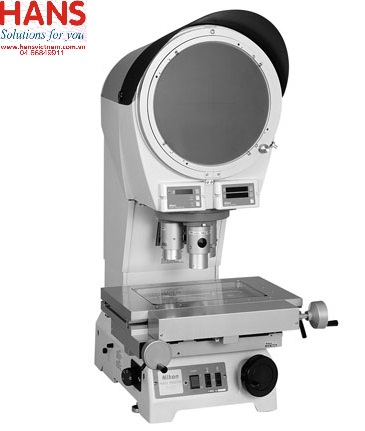

Máy chiếu Nikon V-12B Series

0₫

Nhà Sản Xuất Nikon
Mã Sản Phẩm V-12B Series

Máy chiếu Nikon V-12B Series

Model: V-12B Series

Hãng sản xuất: Nikon

Thông số kỹ thuật:

Projection Screen	V-12BDC and V-12BD provided with digital protractor fine rotation knob, 360° rotation (reading to 1 minute arc)
XY Counter	V-12BDC - Built in (1 mm/0.5 mm selectable); V-12BD - Not Provided; V-12BSC - Built in (1 mm/0.5 mm selectable); V-12BS - Not Provided
Max. Height of Specimen	100mm (4.0 in) with 8x6, 6x4, 4x4, O3L and 2x2
Power Source (2 types)	110 VAC (50/60Hz); 220VAC (50/60 Hz)
Max. Load Capacity	15 kg (33.0 lb) with 8x6 and 6x4, 6 kg (13.2 lb) with 4x4, 5 kg (11.0 lb) with O3L, 5 kg (11.0 lb) with 2x2
Dimensions	409 x 648 x 970-1070 mm (16.1 x 25.5 x 38.2-42.1 in)
Projection Lenses	5x, 10x, 20x, 25x, 50x, 100x, 200x and 500x. 3-lens turret; clamp screw type
Stage	8x6, 6x4, 4x4, O3L and 2x2
Vertical Surface Illumination	All projection lenses feature internal half-reflecting mirrors which are prealigned to the built in vertical surface illuminator. 500x lens should be used with an EPI Condenser Lens.
Weight	Approx. 80 kg (176.4 lb)
Magnification Accuracy	Contour illumination ±0.1%, vertical/oblique surface illumination ±0.15%
Image	Erect and unreversed
Illumination	High/low light intensity control; 24V/150W halogen lamp
Oblique Illumination	Oblique surface illumination can be obtained by tilting EPI illumination unit
Contour Illumination	Telecentric type. 200x and 500x lenses should be used with a DIA Condenser Lens.

Máy chiếu Nikon V-12B Series

Model: V-12B Series

Hãng sản xuất: Nikon

Thông số kỹ thuật:

Projection Screen	V-12BDC and V-12BD provided with digital protractor fine rotation knob, 360° rotation (reading to 1 minute arc)
XY Counter	V-12BDC - Built in (1 mm/0.5 mm selectable); V-12BD - Not Provided; V-12BSC - Built in (1 mm/0.5 mm selectable); V-12BS - Not Provided
Max. Height of Specimen	100mm (4.0 in) with 8x6, 6x4, 4x4, O3L and 2x2
Power Source (2 types)	110 VAC (50/60Hz); 220VAC (50/60 Hz)
Max. Load Capacity	15 kg (33.0 lb) with 8x6 and 6x4, 6 kg (13.2 lb) with 4x4, 5 kg (11.0 lb) with O3L, 5 kg (11.0 lb) with 2x2
Dimensions	409 x 648 x 970-1070 mm (16.1 x 25.5 x 38.2-42.1 in)
Projection Lenses	5x, 10x, 20x, 25x, 50x, 100x, 200x and 500x. 3-lens turret; clamp screw type
Stage	8x6, 6x4, 4x4, O3L and 2x2
Vertical Surface Illumination	All projection lenses feature internal half-reflecting mirrors which are prealigned to the built in vertical surface illuminator. 500x lens should be used with an EPI Condenser Lens.
Weight	Approx. 80 kg (176.4 lb)
Magnification Accuracy	Contour illumination ±0.1%, vertical/oblique surface illumination ±0.15%
Image	Erect and unreversed
Illumination	High/low light intensity control; 24V/150W halogen lamp
Oblique Illumination	Oblique surface illumination can be obtained by tilting EPI illumination unit
Contour Illumination	Telecentric type. 200x and 500x lenses should be used with a DIA Condenser Lens.
