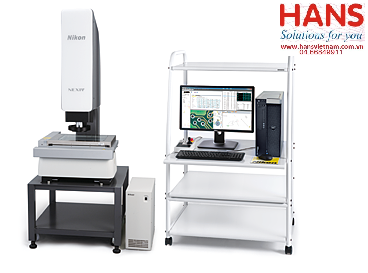

Máy đo 3 chiều Nikon VMZ-R3020

Stroke (X x Y x Z)

300 x 200 x 200 mm (11.8 x 7.8 x 7.8 in.)
250 x 200 x 200 mm (9.8 x 7.8 x 7.8 in.) (with type TZ at low magnification)

Minimum readout

0.01 μm

Maximum workpiece weight

20 kg (44.1 lb.)

Measuring uncertainty

E_{UX, MPE} E_{UY, MPE}: 1.2+4L/1000 μm
E_{UXY, MPE}: 2+4L/1000 μm

Z measurement uncertainty

E_{UZ, MPE}: 1.2+5L/1000 μm (with Laser AF)

Camera

Black & white 1/3” CCD, color 1/3” CCD (option)*

*For type 1, 2 and A only

Working distance

Type 1/2/3: 50 mm (with 37° illumination), 36 mm (with 55° illumination), 10 mm (with 78° illumination)
Type 4: 30 mm
Type TZ: 11 mm with the main objective lens and 32 mm with the left objective lens
Type A: 73.5mm (63 mm with laser AF)

Magnification vs. field of view

Type 1: 0.5 - 7.5x / 9.33 x 7 - 0.622 x 0.467 mm
Type 2: 1 - 15x / 4.67 x 3.5 - 0.311 x 0.233 mm
Type 3: 2 - 30x / 2.33 x 1.75 - 0.155 x 0.117 mm
Type 4: 4 - 60x / 1.165 x 0.875 - 0.07 x 0.068 mm
Type TZ: 1 - 120x / 4.67 x 3.5 - 0.039 x 0.029 mm
Type A: 0.35 - 3.5x / 13.3 x 10 - 1.33 x 1 mm

Auto focus

Type 1, 2, 3, 4 and TZ come with TTL laser AF and vision AF.
Type A comes with vision AF as standard and with laser AF as an option.

Illumination

Type 1/2/3: LED episcopic and diascopic illuminators, 8-segment LED inner and outer ring illuminators (37 degree incident angle with inner ring and 55 and 78 degree incident angles with outer ring)
Type TZ: LED episcopic, diascopic (for main objective lens) and darkfield illuminators
Type 4/A: LED episcopic and diascopic illuminators, 8-segment LED ring illuminator (with oblique angle of 50 degree: type 4, 18 degree: type A)

Power source

AC 100-240V 50/60Hz

Power consumption

5A-2.5A

Dimensions & weight (W x D x H)

Main unit & table: 700 x 730 x 1795 mm / 245 kg (27.5 x 28.7 x 70.6 in. / 540lb.)
Controller: 190 x 450 x 440 / 15 kg (7.5 x 17.7 x 17.3 in. / 33 lb.)

Footprint

2100 x 1100 mm
