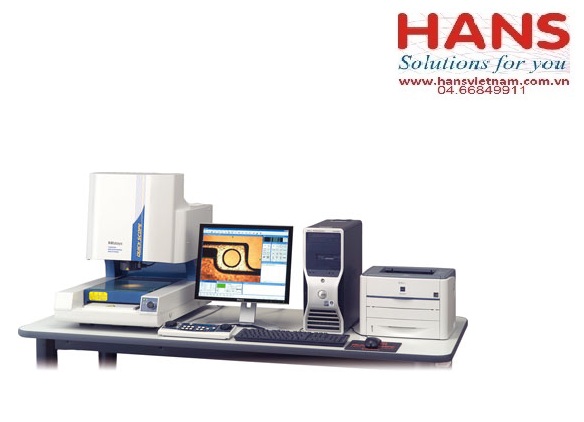

Máy đo ba chiều Mitutoyo QS-250Z

0₫

Nhà Sản Xuất Mitutoyo- Japan
Mã Sản Phẩm QS-250Z

Máy đo ba chiều Mitutoyo QS-250Z

Model : QS-250Z

Hãng sản xuất: Mitutoyo

Thông số kỹ thuật:

Model	Quick Scope
Order No	QS250Z
Drive method	CNC
Measuring Range X-Axis	0-8in 0-200mm
Measuring Range Y-Axis	0-10in 0-250mm
Measuring Range Z-Axis	0-4in 0-100mm
Resolution/Length standard	0.5µm / Linear Encoder
Image detecting unit	1/3" Color CCD camera
*Measuring accuracy1**	XY:(2.5+6L/1000)µm Z:(5+6L/1000)µm
Drive Speed	-
Acceleration and deceleration	Max.250mm/s
Magnification	-
Stage glass size	10.6x12.2in 269x311mm
Max stage loading	22lbs 10kg
Illuminations	Contour Illumination: 12V/30W Halogen Reflected Illumination: 12V/50W Halogen
Illuminations	Fiber-optic ring light: 12V/100W Halogen
Dimensions	18x32x26in 465x815x663mm
Mass	169lbs 76kg
*Power consumption2**	970W at max

Máy đo ba chiều Mitutoyo QS-250Z

Model : QS-250Z

Hãng sản xuất: Mitutoyo

Thông số kỹ thuật:

Model	Quick Scope
Order No	QS250Z
Drive method	CNC
Measuring Range X-Axis	0-8in 0-200mm
Measuring Range Y-Axis	0-10in 0-250mm
Measuring Range Z-Axis	0-4in 0-100mm
Resolution/Length standard	0.5µm / Linear Encoder
Image detecting unit	1/3" Color CCD camera
*Measuring accuracy1**	XY:(2.5+6L/1000)µm Z:(5+6L/1000)µm
Drive Speed	-
Acceleration and deceleration	Max.250mm/s
Magnification	-
Stage glass size	10.6x12.2in 269x311mm
Max stage loading	22lbs 10kg
Illuminations	Contour Illumination: 12V/30W Halogen Reflected Illumination: 12V/50W Halogen
Illuminations	Fiber-optic ring light: 12V/100W Halogen
Dimensions	18x32x26in 465x815x663mm
Mass	169lbs 76kg
*Power consumption2**	970W at max
