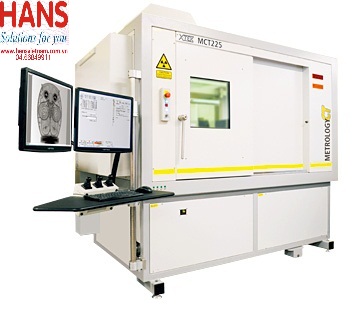

Máy đo bằng tia X-ray Nikon MCT225

0₫

Nhà Sản Xuất Nikon
Mã Sản Phẩm MCT225

Mô tả
Bình luận

Máy đo bằng tia X-ray Nikon MCT225

Model: MCT225

Hãng sản xuất: Nikon

Thông số kỹ thuật:

Accuracy(μm)¹ MPE_SD	9+L/50 (L in mm)
Sample size (maximum)	Diameter 250mm (9.84”) Height 450mm (17.71”)
Sample weight (maximum)	5kg (11lbs)
Manipulator travel	X 480mm (18.89”) Y 450mm (17.71”) Z 730mm (28.74”) R 360deg
Source to detector	1165mm (nominal) (45.98”)
Detector	16 bit 4Mpixels (2000x2000 pixel)
Magnification	1.6x to 150x
Feature detectability (minimum)	2D radiography 2μm (0.002”)
X-ray source	225kV/225W open tube
X-ray spot	3μm (0.00012in) micro-focus
Enclosure temperature	19 to 21°C (66 to 70°F)
Ambient temperature	17 to 25°C (63 to 77°F)
Radiation protection (DIN 54113-2, IRR99)	< 1μSv/hr
Enclosure dimensions	W2214mm (87.2”) x D1275mm (50.2”) x H2205mm (86.8”)
System weight	4200kg (9260lbs)

Tags: Máy đo 3 chiều

Mô tả

Máy đo bằng tia X-ray Nikon MCT225

Model: MCT225

Hãng sản xuất: Nikon

Thông số kỹ thuật:

Accuracy(μm)¹ MPE_SD	9+L/50 (L in mm)
Sample size (maximum)	Diameter 250mm (9.84”) Height 450mm (17.71”)
Sample weight (maximum)	5kg (11lbs)
Manipulator travel	X 480mm (18.89”) Y 450mm (17.71”) Z 730mm (28.74”) R 360deg
Source to detector	1165mm (nominal) (45.98”)
Detector	16 bit 4Mpixels (2000x2000 pixel)
Magnification	1.6x to 150x
Feature detectability (minimum)	2D radiography 2μm (0.002”)
X-ray source	225kV/225W open tube
X-ray spot	3μm (0.00012in) micro-focus
Enclosure temperature	19 to 21°C (66 to 70°F)
Ambient temperature	17 to 25°C (63 to 77°F)
Radiation protection (DIN 54113-2, IRR99)	< 1μSv/hr
Enclosure dimensions	W2214mm (87.2”) x D1275mm (50.2”) x H2205mm (86.8”)
System weight	4200kg (9260lbs)

Tags: Máy đo 3 chiều
