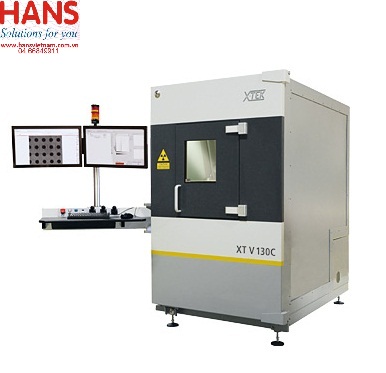

Máy đo bằng tia X-ray Nikon XT V 130C

Max kV

130 kV

Max. electron beam power

10 W

X-ray source

Open transmission target tube

X-ray spot size

3 µm

Defect recognition capability

2 µm

Geometric magnification

2.5x-2,400x

System magnification

Up to 36,000x

Imaging system (Standard)

1.45 Mpixel 12-bit camera with 6" image intensifier

Imaging system (Option)

Varian 1313 or 2520 Digital flat panel
1Mpixel 12bit camera with dual field 4"/6" image intensifier

Manipulator

4-axis (X, Y, Z, T)

Rotate axis

Optional

Tilt

0 - 75 degrees

Measuring volume:

Largest square in single map 406x406 mm (16x16")
Absolute max 711x762 mm (28x30")

Max. sample weight:

5 kg (11 lbs)

Dimensions (BxWxH)

1,225 x 1,810 x 2,145 mm (48x71x84")
(incl. monitor bracket and lamp tower)

Weight

1,935 kg (4,266 lbs)

Radiation safety

<1 μSv/hr at the cabinet surface

Control:

Inspect-X control and analysis software

Automation inspection

Optional

Computed Tomography

Optional

Applications

Real-time inspection of electronics
(BGA, µBGA, flip-chip and loaded PCB boards)
