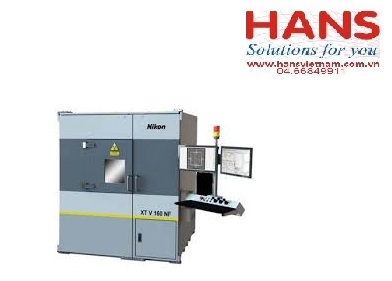

Máy đo bằng tia X-ray, XT V 160 NF, Nikon, X-ray and CT Inspection XT V 160 NF nikon

0₫

Nhà Sản Xuất nikon
Mã Sản Phẩm XT V 160 NF

Máy đo bằng tia X-ray, XT V 160 NF, Nikon, X-ray and CT Inspection XT V 160 NF nikon

Model: XT V 160 NF

Hãng sản xuất: nikon
Bảo hành: 12 tháng

Tình trạng hàng: hàng mới

Thông số kỹ thuật:

kV range	30-160 kV
Max. beam current	600 μA
Max. tube power	20 W
Min. feature recognition	<0.1 μm up to 6W tube power
Geometric magnification	up to 2,400x
Detector	3Mpixel (1,944 x 1,536 pixels) 75 μm pixel size 26 fps update rate
Max. inspection area	510 × 510 mm
Max. board size	580 × 580 mm
Max. tilt angle	60°
Cabinet size	W: 1,819 mm (excl. operator console) H: 1,998 mm D: 1,728 mm
Vibration isolation	Anti-vibration mounts (standard)
Monitor	Single 30” or dual 22” display
X-ray safety	1 μSv/hr (to IRR 99)
kV range	30-160 kV
Max. beam current	600 μA
Max. tube power	20 W

Máy đo bằng tia X-ray, XT V 160 NF, Nikon, X-ray and CT Inspection XT V 160 NF nikon

Model: XT V 160 NF

Hãng sản xuất: nikon
Bảo hành: 12 tháng

Tình trạng hàng: hàng mới

Thông số kỹ thuật:

kV range	30-160 kV
Max. beam current	600 μA
Max. tube power	20 W
Min. feature recognition	<0.1 μm up to 6W tube power
Geometric magnification	up to 2,400x
Detector	3Mpixel (1,944 x 1,536 pixels) 75 μm pixel size 26 fps update rate
Max. inspection area	510 × 510 mm
Max. board size	580 × 580 mm
Max. tilt angle	60°
Cabinet size	W: 1,819 mm (excl. operator console) H: 1,998 mm D: 1,728 mm
Vibration isolation	Anti-vibration mounts (standard)
Monitor	Single 30” or dual 22” display
X-ray safety	1 μSv/hr (to IRR 99)
kV range	30-160 kV
Max. beam current	600 μA
Max. tube power	20 W
