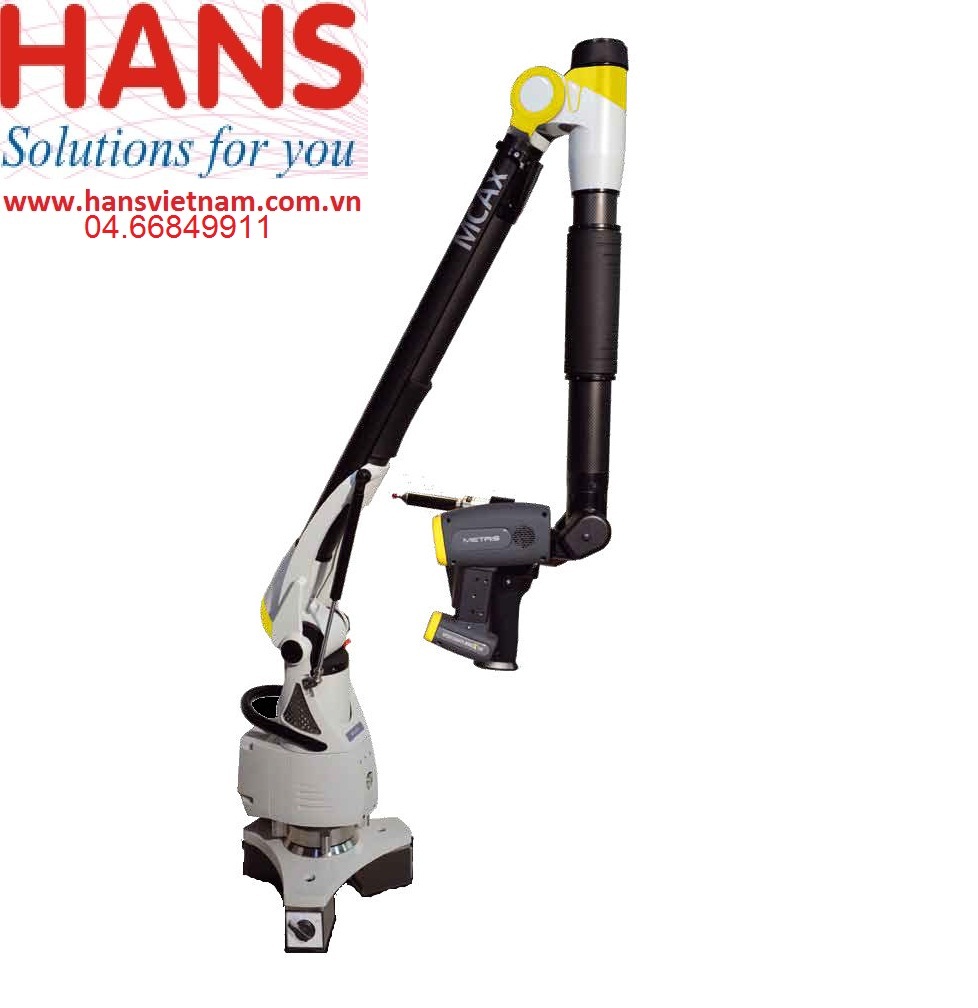

Máy đo cầm tay Nikon MCAx

Measuring range

Point repeatability¹

Volume length accuracy²

Arm weight

MCAx20+

2.0 m (6.6 ft.)

0.023 mm (0.0009 in.)

±0.033 mm (±0.0013 in.)

8.2 kg (18.1 lbs)

MCAx25+

2.5 m (8.2 ft.)

0.027 mm (0.0011 in.)

±0.038 mm (±0.0015 in.)

8.5 kg (18.7 lbs)

MCAx30+

3.0 m (9.8 ft.)

0.042 mm (0.0017 in.)

±0.058 mm (±0.0023 in.)

8.8 kg (19.4 lbs)

MCAx35+

3.5 m (11.5 ft.)

0.055 mm (0.0022 in.)

±0.081 mm (±0.0032 in.)

9.1 kg (20.1 lbs)

MCAx40+

4.0 m (13.1 ft.)

0.067 mm (0.0026 in.)

±0.098 mm (±0.0039 in.)

9.4 kg (20.7 lbs)

MCAx45+

4.5 m (14.8 ft.)

0.084 mm (0.0033 in.)

±0.119 mm (±0.0047 in.)

9.7 kg (21.4 lbs)

MCAx20

2.0 m (6.6 ft.)

0.044 mm (0.0017 in.)

±0.061 mm (±0.0024 in.)

7.9 kg (17.4 lbs)

MCAx25

2.5 m (8.2 ft.)

0.049 mm (0.0019 in.)

±0.069 mm (±0.0027 in.)

8.2 kg (18.1 lbs)

MCAx30

3.0 m (9.8 ft.)

0.079 mm (0.0031 in.)

±0.100 mm (±0.0039 in.)

8.5 kg (18.7 lbs)

MCAx35

3.5 m (11.5 ft.)

0.099 mm (0.0039 in.)

±0.125 mm (±0.0049 in.)

8.8 kg (19.4 lbs)

MCAx40

4.0 m (13.1 ft.)

0.115 mm (0.0045 in.)

±0.151 mm (±0.0059 in.)

9.1 kg (20.1 lbs)

MCAx45

4.5 m (14.8 ft.)

0.141 mm (0.0056 in.)

±0.179 mm (±0.0070 in.)

9.4 kg (20.7 lbs)
