Máy đo công suất 3 pha PCE-360

31.800.000₫

Nhà Sản Xuất PCE-Anh
Mã Sản Phẩm PCE-360

Mô tả
Bình luận

3-Phase-Power Meter and harmonics analyser (real time) with data storage, PC interface and software for measuring different parameters including voltage and current
The PCE-360 3-phase-power meter is ideal for performing an analysis over a long period of time. It is a multifunctional meassuring device for analysing direct current, alternating current voltage and electric demand in watt. When the measuring results are negative a minus will appear on the display of the 3-phase-power meter. When it is in normal mode the device is able to save 99 measuring results immediately but it possesses the opportunity of storing 20000 measuring results when the data logging mode is enabled. The 3-phase-power meter PCE-360 is calibrated by the manufacturer before it is sent to the customer but it is also possible to get a calibration certificate by a specialised calibration laboratory later on. In addition to that a USB interface allows you to transfer the data from the 3-phase-power meter to your PC or laptop. this makes it possible to store the data in order to make use of it after some time. this is helpful when doing long-term measurements. The 3-phase-power meter comes with everything needed to measure and evaluate power, including software and the data cable. Our engineers and technicians will be happy to help you with the 3-phase-power meter , and of course, with the other products in the field of regulation and control, and scales and balances.

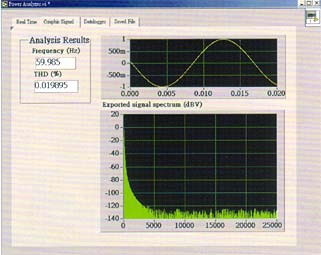

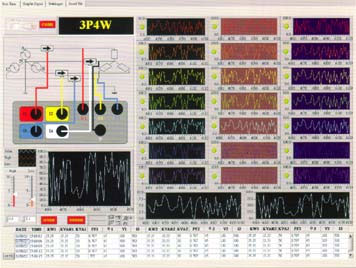

- Real time view, recording and analysis of voltage and current (real effective) - It measures the power factor, the phase angle as well as effective, apparent and reactive power - It includes a pin to measure the neutral conductor - Electrical conductor diameter: max. 40 mm - Harmonic analysis through the software (voltage and current) - 512 K Recorder (20,000 group of values) - Additional memory for 99 simple measurements - RS-232 port, connecting cable to a PC and analysis software - Large display with 10 indications - ISO calibration certificate can be ordered additionally
Technical specifications
Range of measurement / accuracy / resolution: Voltage measurement Current measurement Active power measurement Apparent power measurement Reactive power measurement Power factor measurement Phase angle Frequency measurement (U > 50V) Recognition of Revolving field (UL > 50V) Effective work Apparent work Reactive work	0 to 999.9V true RMS ±0.3% reading +10 dgts / 0.1V 0 to 999.9 true RMS ±0.5% reading +15 dgts / 0.1A 0 to 999.9 kW ±1% reading +20 dgts / 0.1 KW 0 to 999.9 kVA ±1% reading +20 dgts / 0.1 KVA 0 to 999.9 kVar ±1% reading +20 dgts / 0.1 KVar 0 to +1 ±3 dgts / 0.001 -90° to +90° ±3 dgts / 0.1 40 to 100 Hz ±0.1% reading +2 dgts / 0.1 Hz 0 to 9,999 MWh ±1% reading +20 dgts 0 to 9,999 MVAh ±1% reading +20 dgts 0 to 9,999 MVarh ±1% reading +20 dgts
Data Logger	512 kB
Interface	Optical RS-232
Software and data cable	both included and compatible with Windows 2000, XP and ME
Display	LCD with backlight
Power	8 - AA batteries (1.5V) (Mignon)
Dimensions	235 x 117 x 54 mm
Weight	730 g
Operating conditions	85% maximum relative humidity / 0 to +35°C
Ingress protection / Standard	IP 65 / IEC 1010 - 1, 600 V CAT III

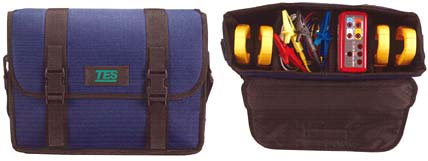

Contents 1 x PCE-360 3-phase-power meter, 4 x current clamps, 4 x alligator clips with 3 meters of cable for each one, 4 x safety measuring cables, 8 x batteries, 1 x adaptor, 1 x carrying case, RS-232 PC cable, software (English and German) and user's manual

Tags: máy đo công suất điện, thiết bị đo công suất, Power Meter
