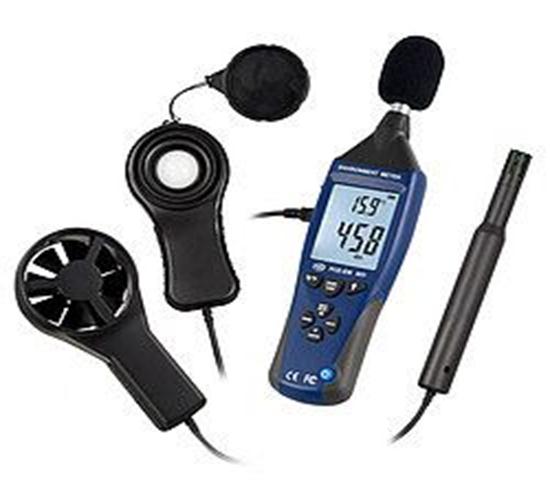

Air Flow Meter PCE-EM 883
Multifunctional measuring device with a wide range of accessories /
Measuring of noise level, illumination level, wind speed, temperature und relative humidity /
Data-Hold-, MIN-, Max- function / display backlight
|
The multifunctional air flow meter PCE-EM 883 combines all major features for determining the environmental conditions. Due to its different external sensors, the air flow meter PCE-EM 883 is able to measure environmental parameters, such as temperature, relative humidity, sound level, illumination level and wind speed. Therefore you can measure the environmental conditions with just one device in no time. In addition, the multifunctional air flow meter is a handheld device, which you can also use for fieldwork. The handling of the air flow meter is very easy. You can use it with one hand only and access all key functions via its 8 buttons. The illuminated display allows the use in areas with bad lighting conditions.
|
|
- measuring of environmental parameters
- high accuracy
- one-hand operation |
- display backlight
- MIN-, MAX-, HOLD- function
- automatic power-off function
|
Technical Specifications |
Wind speed |
Measuring range |
0.5 ... 30 m/s |
Accuracy |
± (3 % ±0.3 d) |
Measuring units |
m/s, km/h, ft/min, Knot, mph |
Temperature |
Measuring range |
-40 ... +70 °C |
Accuracy |
±2 °C |
Measuring units |
°C , °F |
Resolution |
0.1 °C |
Relative Humidity |
Measuring range |
10 ... 95 % RH |
Accuracy |
± 5 % RH |
Resolution |
0.1 % RH |
Sound level |
Measuring range |
35 ... 130 dB |
Accuracy |
±2 dB |
Resolution |
0.1 dB |
Display |
4 digits |
Frequency range |
31.5 Hz ... 8 kHz |
Weighting filter |
dBA |
Microphone |
electrical capacitor microphone |
Applied standard |
IEC61672-1 CLASS2 |
Illumination |
Measuring range |
0 ... 200000 lx; 0 ... 20000 Fc |
Spectral response |
CIE response of a human eye |
Spectral accuracy |
CIE V function f1' = 6 % |
Cosinus response |
f2' = 2 % |
Accuracy |
± 4 % of measured value
± 0.5 % of measuring range (<10000 lx) |
Sensor |
Silicium photo diode with filter |
General specifications |
Data update rate |
1 x per second |
Measuring functions |
Maximum value (MAX)
Minimum value (MIN)
Data-Hold (Hold) |
Automatic power-off |
after ca. 15 min of inactivity |
Power supply |
1 x 9 V battery |
Environmental conditions |
-20 ... +60 °C, 10 ... 90 % RH |
Storing conditions |
-20 ... +60 °C, 10 ... 90 % RH |
Dimensions |
252 x 66 x 33 mm |
Weight |
568 g |
Delivery contents
|
1 x air flow meter PCE-EM 883, 1 x sound level sensor, 1 x wind speed sensor, 1 x illumination sensor, 1 x temperature sensor, 1 x humidity sensor, 1 x wind noise suppressor, 1 x 9 V battery
|
