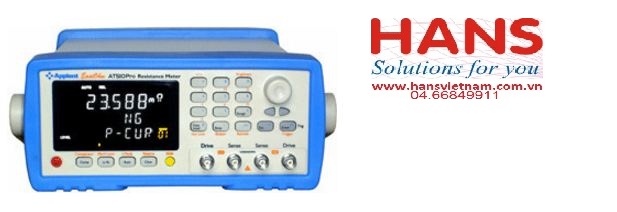

Máy đo điện trở thấp Applent Instrument AT510M(100μΩ～20MΩ)

0₫

Nhà Sản Xuất Applent Instruments- Trung Quốc
Mã Sản Phẩm AT510M

Máy đo điện trở thấp Applent Instrument AT510M(100μΩ～20MΩ)

Hãng sản suất: Applent Instrument – Trung Quốc

Model: AT510M

Thông số kỹ thuật:

Parameter	DC resistance
Accuracy	0.1%
Measurement Range	100μΩ～20MΩ
Measurement current	I - Max: < 1A
Range	Automatic and manual with 7 ranges
Speed	15 times/second 10 times/second 2 times/second
Display	Show,ΔABS,Δ% and sorting results
Display Max	30,000
Adjustment	Short-circuit Zero-Adjust for each range REL function
Comparator	NG-LO, GD-IN, NG-HI display and output adjustable beep and volume
Trigger	Internal ,Manual Trigger
Interface	None(RS232C,handler optional)
Temperature compensation	Temperature compensation optional
Method	Four-terminal measurement
	Voltage: 198VAC~240VAC Frequency: 50Hz Max Power: 15VA
	Outside (mm）：264 (width)x107(height)x350 (depth) Inside (mm)：216(width)x88(height)x323(depth) 4kg
	ATL501 Kelvin clip
	L620 Meter Resistance Four-terminal Clip
	VFD Display. Keypad lock function. Data Hold function

Máy đo điện trở thấp Applent Instrument AT510M(100μΩ～20MΩ)

Hãng sản suất: Applent Instrument – Trung Quốc

Model: AT510M

Thông số kỹ thuật:

Parameter	DC resistance
Accuracy	0.1%
Measurement Range	100μΩ～20MΩ
Measurement current	I - Max: < 1A
Range	Automatic and manual with 7 ranges
Speed	15 times/second 10 times/second 2 times/second
Display	Show,ΔABS,Δ% and sorting results
Display Max	30,000
Adjustment	Short-circuit Zero-Adjust for each range REL function
Comparator	NG-LO, GD-IN, NG-HI display and output adjustable beep and volume
Trigger	Internal ,Manual Trigger
Interface	None(RS232C,handler optional)
Temperature compensation	Temperature compensation optional
Method	Four-terminal measurement
	Voltage: 198VAC~240VAC Frequency: 50Hz Max Power: 15VA
	Outside (mm）：264 (width)x107(height)x350 (depth) Inside (mm)：216(width)x88(height)x323(depth) 4kg
	ATL501 Kelvin clip
	L620 Meter Resistance Four-terminal Clip
	VFD Display. Keypad lock function. Data Hold function
