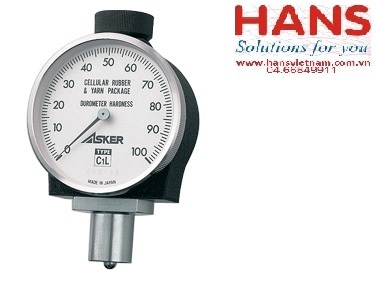

Máy đo độ cứng cao su Asker Type C1L
Model : TypeC1L
Hãng sản xuất: Asker
Thông số kỹ thuật:
Standards
JIS K 7312 JIS S 6050
Indication range
0 point - 100 point (262 degree dial scale)
Minimum indication
1 point (Accuracy : ±1 point)
Indentor Design (mm)
Height: 2.54 5.08 Dia. Spherical
Spring Forces [mN(g)]
0 point: 539(55)
100 point: 8379(855)
Central hole of diameter of Pressure foot
Φ5.5
Pressure foot Dimension (mm)
f16 Longer foot type Length: 18
Outer Dimension (mm)
Approx. Width 57×Depth 30×Height 94
Weight (g)
200
Application
soft rubber, urethane foam, sponge, rolled-threads, film rolls and pottery clay, footwear
Tags: Máy đo độ cứng.
