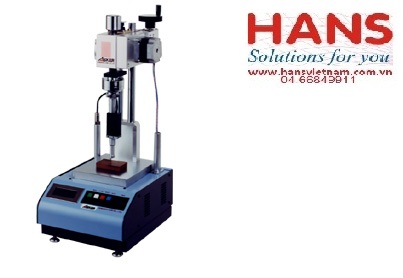

Máy đo độ cứng cao su Asker P1-D

0₫

Nhà Sản Xuất Asker
Mã Sản Phẩm P1-D

Máy đo độ cứng cao su Asker P1-D

Model : P1-D

Hãng sản xuất: Asker

Thông số kỹ thuật:

Conforming standards	JIS K 6253 JIS K 7215 ASTM D 2240 ISO 7619 ISO 868 DIN 53505
Indentor design (mm)	2.50H 30°Cone Tip radius 0.1
Pressure foot size(mm)	Outer diameter 18.0 Inner diameter 3.0
Loading method	Coil spring
Spring load mN(g)	0 point: 0(0) 100 point: 44500(4538)
Minimum readout value	0.1 point
Sensor's descent speed control	Air damper
Adjustable height range (mm)	0-80
Multi data indication	Peak value Timer-hold value (the timer may be set within the range of 0-15 seconds by the timer button on the unit) Real-time value
External output	RS-232C(PC/printer switchable)
Power source	AC100V 2A
Weight (kg)	Approx. 18
Intended specimen type	Hard rubbers, plastics

Tags: Máy đo độ cứng.

Máy đo độ cứng cao su Asker P1-D

Model : P1-D

Hãng sản xuất: Asker

Thông số kỹ thuật:

Conforming standards	JIS K 6253 JIS K 7215 ASTM D 2240 ISO 7619 ISO 868 DIN 53505
Indentor design (mm)	2.50H 30°Cone Tip radius 0.1
Pressure foot size(mm)	Outer diameter 18.0 Inner diameter 3.0
Loading method	Coil spring
Spring load mN(g)	0 point: 0(0) 100 point: 44500(4538)
Minimum readout value	0.1 point
Sensor's descent speed control	Air damper
Adjustable height range (mm)	0-80
Multi data indication	Peak value Timer-hold value (the timer may be set within the range of 0-15 seconds by the timer button on the unit) Real-time value
External output	RS-232C(PC/printer switchable)
Power source	AC100V 2A
Weight (kg)	Approx. 18
Intended specimen type	Hard rubbers, plastics

Tags: Máy đo độ cứng.
