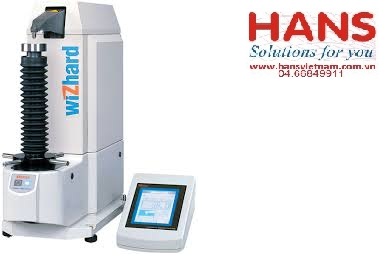

Máy đo độ cứng Mitutoyo HR-521

Order Number

810-202-03A

810-204-03A

Model Number

HR-521

HR-523

Prelimiary Test Force

29.42N(3kgf)
98.07N(10kgf)

29.42N(3kgf)
98.07N(10kgf)

Test Force

Rockwell 588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
Rockwell Superficial 147.1N (15kgf), 294.2N (30kgf), 441.3N (45kgf)

Rockwell 588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
Rockwell Superficial 147.1N (15kgf), 294.2N (30kgf), 441.3N (45kgf)

Specimen Depth

5.9in-150mm

5.9in-150mm

Dimension

9.84x26.38x23.82in 250x670x605mm

9.84x26.38x23.82in 250x670x605mm

Display

Touch screen operation with back-lit LCD graphic display

Touch screen operation with back-lit LCD graphic display

Drive

Manual (w/Auto-brake mechanism)

Power-Drive (for full-automatic measurement)

Max. Specimen Height

8.1in-205mm

8.1in-205mm

Mass

132lbs 60kg

132lbs 60kg

Output

RS-232C, SPC, Centronics

RS-232C, SPC, Centronics

Load Duration Range

0/s min-120s/ max s/ increment

0/s min-120s/ max s/ increment
