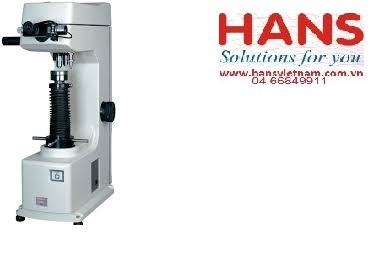

Máy đo độ cứng Mitutoyo  HV112

Model Number

HV112

HV114

HV113

HV115

Order Number

810-163A

810-165A

810-981A

810-985A

Test Force

1.961N (0.2kgf), 2.942N (0.3kgf)
4.903N (0.5kgf), 9.807N (1kgf)
24.51N (2.5kgf)
49.03N (5kgf), 98.07N (10kgf), 196.1N (20kgf)

9.807N (1kgf), 19.61N (2kgf)
29.42N (3kgf),49.03N (5kgf)
98.07N (10kgf), 196.1N (20kgf)
294.2N (30kgf), 490.3N (50kgf)

1.961N (0.2kgf), 2.942N (0.3kgf)
4.903N (0.5kgf), 9.807N (1kgf)
24.51N (2.5kgf)
49.03N (5kgf), 98.07N (10kgf), 196.1N (20kgf)

9.807N (1kgf), 19.61N (2kgf)
29.42N (3kgf),49.03N (5kgf)
98.07N (10kgf), 196.1N (20kgf)
294.2N (30kgf), 490.3N (50kgf)

Test Force selection

Dial

Dial

Dial

Dial

Display

-

9" monochrome CRT

9" monochrome CRT

-

Loading Accuracy

±1%

±1%

±1%

±1%

Load Control

50 - 100µ/s Automatic (loading, duration, unloading) Automatic

53 - 100µ/s Automatic (loading, duration, unloading) Automatic

51 - 100µ/s Automatic (loading, duration, unloading) Automatic

52 - 100µ/s Automatic (loading, duration, unloading) Automatic

Load Duration Range

5s/ min 99s/ max s/ Increment

5s/ min 99s/ max s/ Increment

5s/ min 99s/ max s/ Increment

5s/ min 99s/ max s/ Increment

Camera

-

-

CCD

CCD

Microscope Reading

0.1um

-

-

0.1um

Measuring microscope Total magnification

-

250X, 500X

250X, 500X

-

Minimum Reading

-

0.1

0.1

-

Display Function

Conversion:
Hard: TENS, HS, HBS, HR15N, HR30N, HR45N, HRA, HRD, HRC, HK, HV
Soft: TENS, R15T, HR30T, HR45T, HRA, HRF, HRB, HRG, HK, HV
Statistical list; N, Max., Min., Average, Range, High, Low, Good, Over
Under, SD(n-1), SD(n-1), SD(n) OK/NG Judgement, Curve correction; 0.01 to 200.00mm

Conversion:
Hard: TENS, HS, HBS, HR15N, HR30N, HR45N, HRA, HRD, HRC, HK, HV
Soft: TENS, R15T, HR30T, HR45T, HRA, HRF, HRB, HRG, HK, HV
Statistical list; N, Max., Min., Average, Range, High, Low, Good, Over
Under, SD(n-1), SD(n-1), SD(n) OK/NG Judgement, Curve correction; 0.01 to 200.00mm

Conversion:
Hard: TENS, HS, HBS, HR15N, HR30N, HR45N, HRA, HRD, HRC, HK, HV
Soft: TENS, R15T, HR30T, HR45T, HRA, HRF, HRB, HRG, HK, HV
Statistical list; N, Max., Min., Average, Range, High, Low, Good, Over
Under, SD(n-1), SD(n-1), SD(n) OK/NG Judgement, Curve correction; 0.01 to 200.00mm

Conversion:
Hard: TENS, HS, HBS, HR15N, HR30N, HR45N, HRA, HRD, HRC, HK, HV
Soft: TENS, R15T, HR30T, HR45T, HRA, HRF, HRB, HRG, HK, HV
Statistical list; N, Max., Min., Average, Range, High, Low, Good, Over
Under, SD(n-1), SD(n-1), SD(n) OK/NG Judgement, Curve correction; 0.01 to 200.00mm

Max. Specimen Height

8.07in 205mm

8.07in 205mm

8.07in 205mm

8.07in 205mm

Max. Specimen Depth

6.7in 170mm

6.7in 170mm

6.7in 170mm

6.7in 170mm

Optical Path

2-way switchable (microscope/photograph)

2-way switchable (microscope/photograph)

2-way switchable (microscope/photograph)

2-way switchable (microscope/photograph)

Output

SPC, RS-232C Centronics

SPC, RS-232C Centronics

SPC, RS-232C Centronics

SPC, RS-232C Centronics

Power Supply

120V AC (±10%) 60Hz

120V AC (±10%) 60Hz

120V AC (±10%) 60Hz

120V AC (±10%) 60Hz

Dimension Main Unt only

9.7x20.3x31.3in 245x515x770mm

9.7x20.3x31.3in 245x515x770mm

9.7x20.3x31.3in 245x515x770mm

9.7x20.3x31.3in 245x515x770mm

Mass

110lbs 50kg

121.4lbs 55.2kg

121.4lbs 55.2kg

110lbs 50kg
