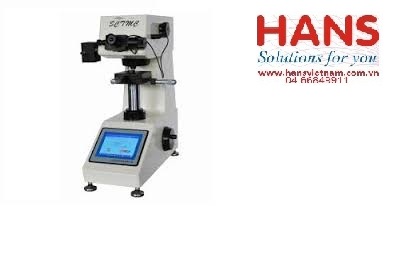

Máy Đo Độ Cứng SCTMC XHV-1000Z

Model

DHV-1000

DHV-1000/Z

MHV-1000
MHV-2000

XHV-1000

Tes Force

0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80 ( MHV-2000/Z 19.61)

10, 25, 50, 100, 200, 300, 500, 1000 ( MHV-2000/Z 2000)

Lens/ indenterswitch

With Hand Turret

Whit Motorized
Turret

With Hand Turret

Whit Motorized Turret

Dwell time of the
test force

(5-60)S

Amplification of
 the Microscope

200x , 400x

100x, 400x

Carriage  Control

 Automatic (loading/holding-up of the load/unloading)

Min. Graduation
Value of the Testing
 Drum Wheel

0.01μm

Test Field

1HV-2967HV

X-Y Testing Table

Size: 100x100 mm, Stroke: 25 x 25 mm, Resolution Rate: 0.01 mm

 Language

English

Specimen

The Max Height: 100mm

Energy-saving mode

After 10 minutes of non-use it enters the repose mode automatically.

 Light Source/
 Power Supply

110v/220v, 50-60Hz / Halogen lamp

Output

No built-in printer

with built-in printer and a RS 232 serial interface

Loading Motor

 3W, 100V AC, 4 rpm

Power source

AC 220V, 50/60Hz

Total Power
Consumption

≤ 60W

Main Accessories

Vickers indenter, Objective  10x, 40x , Digital Micro lens 10x, X-Y Table,
Thin specimen Test table, Fork-shaped Test table, Fine Wire Tes Table,
adjustable Screws, Level Gauge, RS-232 Cable, micro Vickers Hardness Test Block, etc

Weight /
Package Dimension

Gross Weight: 44kg, Net Weight: 30kg/ 595x365x780(mm)
