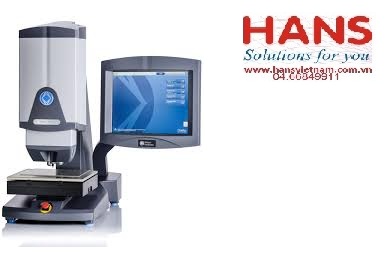

Máy đo độ cứng tự động Wilson VH3100

Model

VH3100

Hardness Scales

Knoop and Vickers

Test Load

0.05, 0.1, 0.2, 0.3, 0.5, 1, 2, 3, 5, 10 kgf

Test Load Controls

Closed Loop

Test Load Selection

Automatic

Dwell Time

5 - 99 seconds

Vertical Testing Capacity

125 mm, 170 mm or 215 mm

Test Cycle

Automatic (loading/dwell/unloading)

Specimen Illumination

LED

Standards Compliance

ASTM E384 & E92, EN-ISO 6507 and JIS

Conversion

ASTM E140, ISO 18625 and GB

Data Output

USB, Ethernet

Display

15" Capacitive Touch, or 23" TFT

Turret

3 + 1 position turret (1 indenter, 2 objectives + overview)

Objectives

5x, 10x, 20x, 40x, 50x, 100x (LWD)

Magnification

2,5x - 2000x (objective dependant)

Measuring Range

20 - 220 microns at 50x

Optical Path

5Mp camera

Operating Temperature

10º to 38º

Humidity

10% - 90% non-condensing

Frequency

50/60 Hz

Voltage

110-220V
