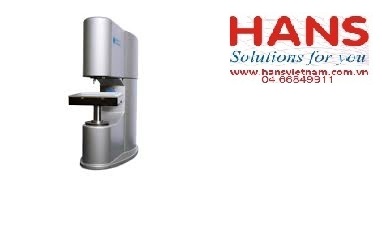

Máy đo độ cứng Wilson KL4

Hardness Scales

HV0,1; HV0,3; HV0,5; HV1; HV2; HV3; HV5; HV10; HBW1/5; HBW1/10; HK0,1; HK0,3; HK0,5; HK1; HK2; HKV3; HK5; HK10;

Test Force

100 gf (0.98 N) - 10 kgf (98 N)

Test Load

Controlled Spring Load

Dwell Time

1 - 99 seconds

Machine Dimensions
(L x W x H)

550 mm (21.65 in) x 270 mm (10.62 in) x 760 mm (29.92 in)

Vertical Testing Capacity

150 mm (5.90 in) with manual test stages
115 mm (4.52 in) with motorized test stages

Machine Net Weight

70 kg (154 lbs)

Power Supply

230V / 50-60Hz

Operating Temperature

10° to 40° C

Humidity

Max. 80%

Data Output

ASCII Format

Configurations

Manual operated tester
Semi-automatic tester
Fully automatic tester

Special Features

5 Megapixel digital camera
5 Megapixel overview camera
Automeasurement of indent image
Autofocus
LED lighting system
Highest test cycle speed in the industry
Zoom module for wide range of magnification
Windows based test program for database export
