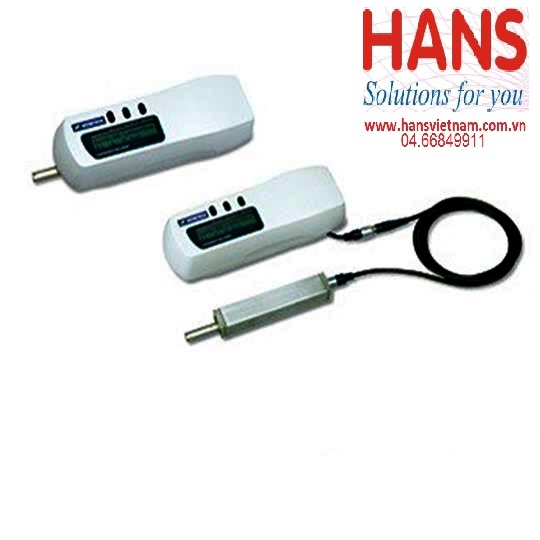

Máy đo độ nhám bề mặt Accretech Handysurf E-35A/E-40A/E-45A

Máy đo độ nhám bề mặt Accretech Handysurf E-35A/E-40A/E-45A

Model: Handysurf E-35A/E-40A/E-45A

Hãng sản xuất: Accretech

Thông số kỹ thuật:

E-35B Tracing Driver: Standard Type

Popular standard type for on-site measuring
Powerful functions in a compact design.
Large memory capacity holds 10 measurement data.
Max. measuring range: 12.5mm

E-40A Tracing Driver: Retraction Type

Detector retracts during standby and after measuring
Reduces risk of probe and pickup damage.
Supports use of pickup with automated devices built- in.
Retraction amount: 1.5 mm
Max. measuring range: 12.5 mm

E-45A Tracing Driver: Horizontal Tracing Type

Suitable for constricted locations such as crankshaft pins, journals, etc.
Allows highly efficient axial direction measurement using horizontal tracing in a constricted location where conventional measurement is difficult.
Max. measuring range: 4.0 mm
Measuring speed: 0.6 mm/s

E-45A cannot be built-in to a main unit.

Combined example of each driving unit and height gage.

Optional post-mount (E-CS-S26A） and height gage adapter （E-WJ-S93A) are necessary.
