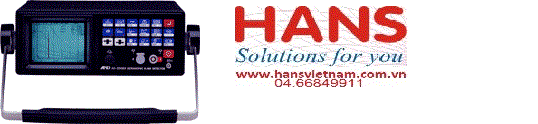

Máy dò khuyết tật A&D AD-3213EX(2.5 ~ 10,000 mm)

Dải đo

2.5 ~ 10,000 mm (Resolution: 0.1 mm)
0.1 ~ 500 inches (Resolution: 0.01 inches)

Bước

2,5/5/10/25/50/125/250/500/1,000/2,500/5,000/10,000 mm & continuous
0.1/0.2/0.5/1/2/5/10/20/50/100/200/500 inches & continuous

Vận tốc

100 ~ 19,999 m/s (4 ~ 800 inches/US)

Probe Delay

0 ~200 µs

Display Start

-1 00 ~ 9,900 mm (DAC Curve Mode fixed at 0 mm)

Gain

0 ~ 100 dB

Gain Step

0.1/6 dB

Test Mode

Pulse Echo/Transmit Receive

Pulse Energy

High/ Low (Square Pulse -350/-50V)

Pulse Width

50 ~ 275 ns STEP (Automatically Related to Frequency)

Damping

25/50/100/400Ω

Pulse Repetition

500 Hz max. (Fast), 200 Hz max. (Mid), 100 Hz max. (Slow)

Band Width

0.1 to 10 MHz (-3 dB)
0.05 to 15 MHZ (-6 dB)
Broad Band (equivalent sample frequency= 200 MHz @BB)
0.5/1/2/5/10 MHz 5 Narrow Band (equivalent frequency >= 20 X Band Width)

Rejection

0 ~ 80%

Rectification Mode

V±/V+/V- /(RF RANGE <= VELO X 140/f/2/2 =5920 X 140/5M/2/2 = 41.44 mm)

Vertical Linearity

±3% (JIS)

Display

4 inches TFT colour LCD, 160 X 234 dot, 60 Hz

Language

English

Unit

Metric, inch

Gate

1 gate, 2 gates, DAC Curve (Stop and Start is variable)

Gate Calculation

y, d, W, Differential, %, dB (Cross/Peak)

DAC Curve

10 points max.

Setting Memory

20

Data Memory

100 (DATA+WAVE+GRAPH)

Interface

RS-232C

Operating Temperature

0 ~ 40°C

Nguồn

AC 200V (or 100V, optional)
4 hour operation with rechargeable battery
3 hour charging time (approximately)

Trọng lượng

6 kg

Kích thước

265(W)X 103(H)X311 (D)mm
