Máy đo lực kéo nén Digitech DTG Series

Measuring accuracy

±0.2％ F.s

Measuring unit

N, kgf(gf), lb

Measuring cycle

1ms, 5ms, 16ms, 50ms (selectable)

Display renewal cycle

1, 2, 5, 10, 20times /sec (selectable)

Communication method

USB mini B

Memory

1000 data

External input

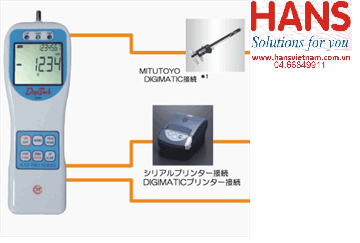

Mitutoyo digimatic input, pulse input.（displacement meter）point ON,OFF load detection input.

Printer output

Serial output,Mitutoyo digimatic output.

Output for test stand

Load setting /displacement setting method UP,DOWN,STOP output.overload output(open collector output)

Analog output

±2V / f.s（load value only）

Tolerance judgment output

LOW・GOOD・HIGH LED lighting and output.（open collector output）

Display

H45mm×W50mm LCD. Load: 6digit, Displacement: 7digit. Battery remain quantity.

Dimension

H220mm×W74mm×D37mm

Weight

approx. 500g

Operationtemperrature

0℃～＋40℃

Power source

Ni-MH battery. AC100V～240V multi AC adapter.

Standard accessory

6pcs jig. A multi AC adapter.USB cable.Carrying case.Operation manual.Test Certificate
