Máy đo phản xạ vector trên PC Copper Mountain Planar R54 (85 MHz – 5.4 GHz (S11) )

Máy đo phản xạ vector trên PC  Copper Mountain  Planar R54 (85 MHz – 5.4 GHz (S11) )

Hãng sản suất: Copper Mountain -Mĩ

Model: Planar R54

Thông số kỹ thuật:

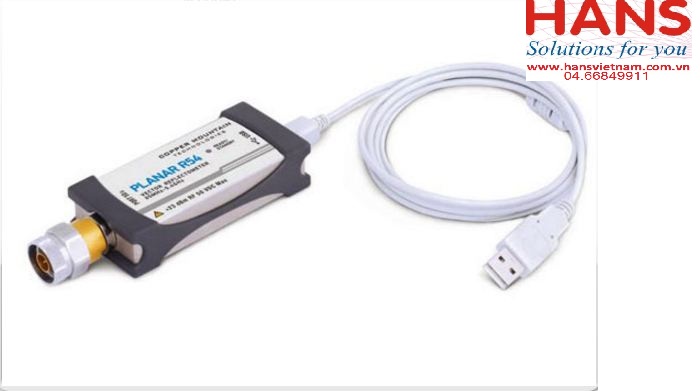

The size of a deck of cards, the USB-powered Planar R54 VNA is a 1-port VNA capable of measuring S₁₁ from 85 MHz to 5.4 GHz and designed for use with with any Windows PC or laptop. Its compact form factor oftentimes enabled direct connection to the device under test, eliminating uncertainty associated with a test cable prone to flexure and damage. The free, lightweight VNA application connects to the R54 with a standard USB cable, creating a future-proof solution that significantly enhances ease of use compared with conventional instruments.

The R54 provides a wide variety of analysis capabilities, including time-domain with gating and DTF measurements at no additional cost. Collection of metrology-grade S-parameter test results can be achieved manually or through automation in Python, MATLAB, Excel, C++, VB.NET, or LabVIEW.

• Dải tần số: 85 MHz to 5.4 GHz
• Thông số đo: S₁₁ as Log magnitude, DTF, Smith, and more
• Loại sweep: Linear frequency, log frequency, segment
• Hiệu quả định hướng: 45 dB below 4 GHz; 40 dB up to 5.4 GHz
• Tốc độ đo 200 µs per point
• Thiết lập đầu ra: High or Low
• Up to 100,001 measurement points per sweep

Applications of the R54 include antenna matching, cable and connector quality control, antenna production quality assurance, field testing and troubleshooting of cables, material measurements

Data Sheets

• R54 Data Sheet

hướng dẫn sử dụng

• R54 Operating Manual
• R54 Programming Manual

phần mềm

• R54 Installer
  (v2.5.9; July 29, 2015)
• R54 Simulator/Demo
  (v2.5.9; July 29, 2015)
• R54 Software Release Notes

tự động kiểm tra

• R54 Code Examples r2.5.6
• LabVIEW Driver r2.5.8
• Programming Guides v3.49
