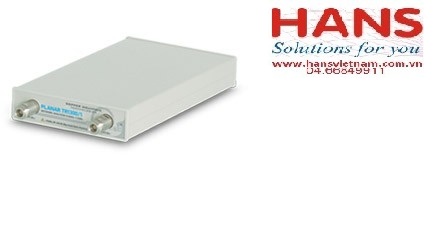

Máy đo phản xạ vector trên PC Copper Mountain Planar TR1300/1 (0.3 MHz - 1.3 GHz, 2-port 1-path (S11, S21))

Máy đo phản xạ vector trên PC Copper Mountain Planar TR1300/1 (0.3 MHz - 1.3 GHz, 2-port 1-path (S11, S21))

Hãng sản suất: Copper Mountain -Mĩ

Model: Planar TR1300/1

Applications of the TR1300 include RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurement, antenna matching, quality control, material measurements, and many others. Curious to see what other users think of this device?

Data Sheets

Thông số kỹ thuật:

The highly compact Planar TR1300/1 VNA is a 1.3 GHz, 2-port 1-path instrument, capable of 130 dB dynamic range and designed for operation with any Windows PC or laptop. Thanks to its unmatched portability, TR1300 can be shared easily within a team or brought to test sites. The free, lightweight VNA application connects to the TR1300 with a standard USB cable, creating a future-proof solution that significantly enhances ease of use compared with conventional instruments.

The TR1300 provides a wide variety of analysis capabilities, including time-domain with gating and frequency offset modes, at no additional cost. Collection of metrology-grade S-parameter test results can be achieved manually or through automation in Python, MATLAB, Excel, C++, VB.NET, or LabVIEW.

• Dải tần số: 300 kHz to 1.3 GHz
• Thông số đo: S₁₁, S₂₁
• Loại sweep: Linear frequency, log frequency, segment, power sweep
• Dải động: 130 dB (10 Hz
• Tốc độ đo : 150 µs per point at 95 dB dynamic range
• Thiết lập đầu ra: -55 dBm to +3 dBm

Hướng dẫn.

• TR1300/1 Operating Manual
• TR1300/1 Programming Manual

Phần mềm

• TR1300/1 Installer
  (v0.8.14; July 24, 2015)
• TR1300/1 Simulator/Demo
  (v0.8.14; July 24, 2015)
• TR1300/1 Software Release Notes

Tags:máy phân tích mạng vector, máy phân tích mạng viễn thông, VECTOR REFLECTOMETER
