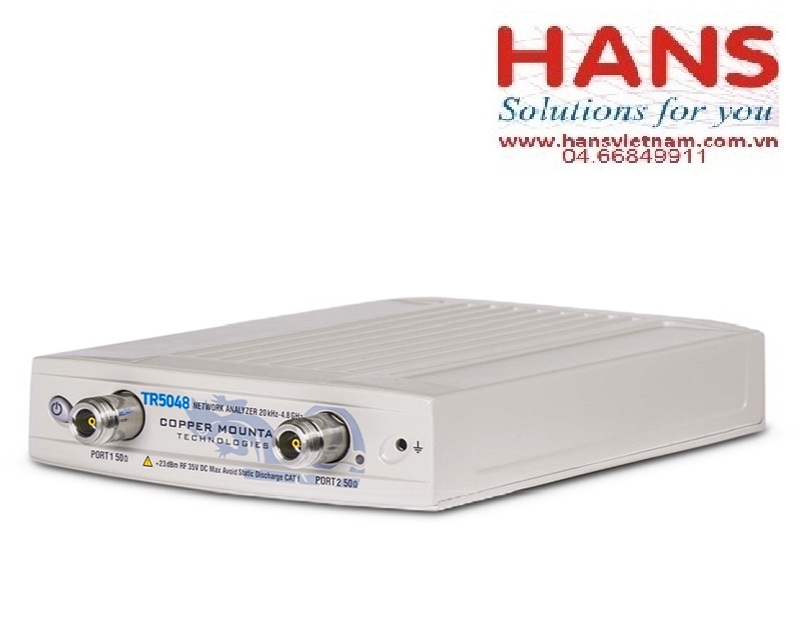

Máy đo phản xạ vector trên PC Copper Mountain Planar TR5048 (20 kHz – 4.8 GHz, 2-Port 1-Path (S11, S21) )

Máy đo phản xạ vector trên PC  Copper Mountain  Planar TR5048 (20 kHz – 4.8 GHz, 2-Port 1-Path (S11, S21) )

Hãng sản suất: Copper Mountain -Mĩ

Model: Planar TR5048

Applications of the TR5048 include RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurement, antenna matching, quality control, material measurements, and many others. Curious to see what other users think of this device?

Thông số kỹ thuật:

The highly compact TR5048 VNA is a 4.8 GHz, 2-port 1-path instrument, capable of 120 dB dynamic range and designed for operation with any Windows PC or laptop. Thanks to its unmatched portability, TR5048 can be shared easily within a team or brought to test sites. The free, lightweight VNA application connects to the TR5048 with a standard USB cable, creating a future-proof solution that significantly enhances ease of use compared with conventional instruments.

The TR5048 provides a wide variety of analysis capabilities, including time-domain with gating and frequency offset modes, at no additional cost. Collection of metrology-grade S-parameter test results can be achieved manually or through automation in Python, MATLAB, Excel, C++, VB.NET, or LabVIEW.

• Dải tần số: 20 kHz to 4.8 GHz
• Thông số đo: S11, S21
• Loại sweep: Linear frequency, log frequency, segment, power sweep
• Dải động: 120 dB (10 Hz)
• Tốc độ đo : 250 µs per point at 85 dB dynamic range
• Thiết lập đầu ra: -50 dBm to +5 dBm
• Up to 200,001 measurement points per sweep

Hướng dẫn sử dụng

• TR5048 Operating Manual
• TR5048 Programming Manual

 Phần mềm

• TR5048 Installer
  (v0.8.14; July 24, 2015)
• TR5048 Simulator/Demo
  (v0.8.14; July 24, 2015)
• TR5048 Software Release Notes

Tags:máy phân tích mạng vector, máy phân tích mạng viễn thông, VECTOR REFLECTOMETER
