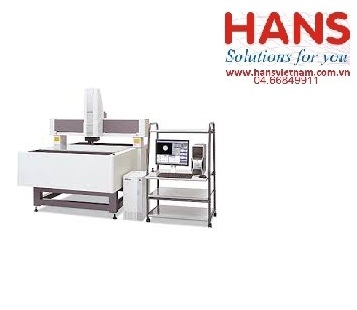

Máy đo quang Video, NEXIV VMR-10080, Nikon, Video & Microscope Measuring NEXIV VMR-10080 nikon

Stroke (X x Y x Z):

Standard 1000 x 800 x 150mm (39.4 x 31.5 x 5.9 in); High Magnification 1000 x 800 x 115mm (39.4 x 31.5 x 4.5 in)

Z-axis guide accuracy:

(3 + L/50) µm

Host Computer:

Main unit IBM PC/AT compatible (Windows® 2000); CRT 21-inch color

Maximum specimen height :

Standard 135mm, High Magnification 110mm

Auto focus:

(Standard model/High magnification model I) Image AF, Laser AF; (High magnification model II) Image AF, TTL Laser AF

Measuring accuracy

(X . Y):

Standard U1XY- (3.5 + L/200) µm; High Magnification U2XY- (3.5 + L/250) µm, High Magnification U1XY- (2.5 + L/250) ) µm

Field of view:

(Standard) 10 x 8 to 1 x 0.8mm, (High magnification model I) 4 x 3.2 to 0.4 x 0.32mm, (High magnification model II) 2 x 1.6 to 0.2 x 0.16mm, (High magnification model III) 1 x 0.8 to 0.1 x 0.08mm

Minimum readout:

0.1 µm

Dimensions (W x D x H) and weight (Main Body):

1534 x 2117 x 1793mm; 1500kg (60.4 x 83.3 x 70.6 in; 3,306.9 lb)

Footpring (D x W):

2600 x 2300mm (102.4 x 90.6 in)

Dimensions (W x D x H) and weight (Illuminator):

220 x 130 x 360mm; 7 kg (8.7 x 5.1 x 14.2 in (15.4 lb)

Maximum workpiece weight:

40kg (88.2 lb)

Zoom Magnification:

5-step zoom for all models: (Standard) 0.75x to 7.5x, (High magnification model I) 1.875x t 18.75x, (High magnification II) 3.75x to 37.5x, (High magnification III) 7.5x to 75x

Power source:

AC 100 to V ±10%, 50/60 Hz

Power consumption:

Approx 18A

Camera:

B/W CCD or color CCD camera
