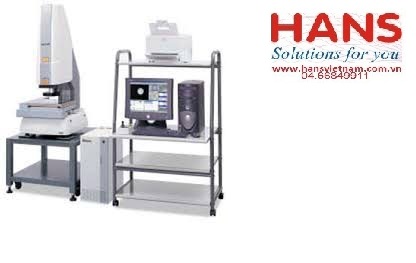

Máy đo quang Video, NEXIV VMR-1515, Nikon, Video & Microscope Measuring NEXIV VMR-1515 nikon

Stage Stroke (Xx Yy Zz) (Standard):

150 x 150 x 150mm (5.9 x 5.9x 5.9 in)

Minimum readout:

0.1 µm

Maximum work piece weight:

20kg (44.0 lb)

Measuring accuracy at 20C+/-0.5K: U1x U1y:

1.5 + 4L/1000 µm

Measuring accuracy at 20C+/-0.5K: U2xy (Standard):

2.5 + 4L/1000 µm

Z-axis guide accuracy:

(1.5 + L/150) µm

Camera:

B/W progressive scan camera

Maximum specimen height (Standard)

150mm

Objective Working Distance

models: Type 1, 2, 3 = 50mm

Zoom Head Magnification and Field of View

Type 1: 0.5- 7.5x, 9.33 x 7.00mm - 0.622 x 0.467; Type 2: 1- 15x, 4.67 x 3.50mm - 0.311x 0.233mm; Type 3: 2 - 30x, 2.33 x 1.75mm - 0.155 x 0.117mm

Auto Focus:

TTL Through the lens video auto focus

Power Source:

AC 100 to 240 V ±10%, 50/60 Hz

Power Consumption:

Approximately 7A

Dimensions and Weight: Main Body Only:

500(W) x 690(D) x 1195(H) mm, 160kg; 19.7(W) x 27.2(D) x 47(H) in., 352.7lb

Dimensions and Weight: Main Body & Table:

690(W) x 730(D) x 1725(H) mm, 200kg; 27.2(W) x 28.8(D) x 67.9(H) in., 440.9lb

Dimensions and Weight: Controller:

250(W) x 550(D) x 500(H) mm, 20kg; 9.8(W) x 21.7(D) x 19.7(H) in., 44.1lb
