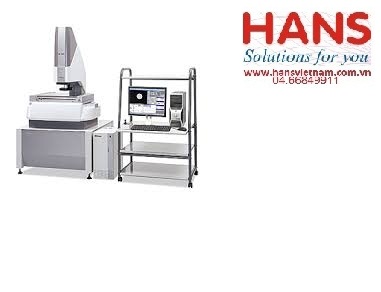

Máy đo quang Video, NEXIV VMR-3030, Nikon, Video & Microscope Measuring NEXIV VMR-3030 nikon

Stroke (X x Y x Z)

Standard- 300 x 300 x 150mm (11.8 x 11.8 x 5.9 in); with High Magnification module VMR-z120x 300 x 300 x 150mm (11.8 x 11.8 x 5.9 in)

Measuring accuracy

(X . Y)

Standard U1XY - ; High Magnification U2XY (0.9 + L/300) microns; U1XY (0.6 + L/300) µm

Maximum specimen height

Standard 150; High Magnification 150

Z-axis guide accuracy

(0.9 + L/150) µm

Dimensions (W x D x H) and weight (Main Body)

(including table) 1000 x 1230 x 1900 mm (39.4 x 48.4 x 74.8 in); 600kg (1322.8 lb)

Auto focus

(Standard model/High magnification model) Image AF, Laser AF

Field of view

(Standard) 10 x 8 to 1 x 0.8mm; (High magnification model 1) 4 x 3.2 to 0.4 x 0.32mm; (High magnification model 2) 2 x 1.6 to 0.2 x 0.16mm; (High magnification model 3) 1 x 0.8 to 0.1 x 0.08mm

Minimum readout

0.01 µm

Footprint (D x W)

1500 x 2000 mm (59.1 x 78.7 in)

Maximum workpiece weight

10kg (22.0 lb)

Dimensions (W x D x H) and weight (Illuminator)

220 x 130 x 360mm (8.7 x 5.1 x 14.2 in); 7kg (15.4 lb)

Zoom Magnification

5-step zoom for all models- (Standard) 0.75x to 7.5x; (High magnification model 1) 1.875x to 18.75x; (High magnification 2) 3.75x to 37.5x; (High magnification 3) 7.5x to 75x

Power source

AC 100 to 240 V ±10%, 50/60 Hz

Power consumption

Approximately 15A

Camera

B/W CCD or color CCD camera

Host Computer

Main unit PC compatible
