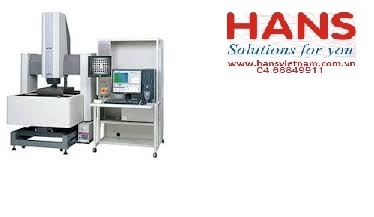

Máy đo quang Video, NEXIV VMR-K3040ZC, Nikon, Video & Microscope Measuring NEXIV VMR-K3040ZC nikon

Stage Stroke (Xx Yy Zz) (Standard):

300 x 400 x 150mm (11.8 x 15.8x 5.9 in)

Minimum readout

0.1 µm

Maximum work piece weight

20kg (44.0 lb)

Measuring accuracy at 20C ±0.5K: U1x U1y

1.5 + 4L/1000 µm

Measuring accuracy at 20C ±0.5K: U2xy (Standard)

2.5 + 4L/1000 µm

Z-axis guide accuracy

(1.5+L/150) µm

Camera

B/W Progressive Scan camera

Maximum specimen height (Standard)

150mm

Objective 1.5x

W.D. 24mm, FOV 8 x 6mm to 0.53 x 0.4mm, Z measurement @ 2 sigma 0.6µm

Objective 3x

W.D. 24mm, FOV 4 x 3mm to 0.27 x 0.2mm, Z measurement @ 2 sigma 0.35µm

Objective 7.5x

W.D. 24mm, FOV 1.6 x 1.2 mm to 0.11 x 0.08mm, Z measurement @ 2 sigma 0.25µm

Auto Focus

TTL Through the lens laser and video auto focus

Power Source

AC 100 to 240 V ±10%, 50/60 Hz

Power Consumption

Approximately 13A

Dimensions and Weight: main body and table

1150(W) x 1250(D) x 1980(H) mm, 900kg; 51.1 (W) x 49.2(D) x 80(H) in., 1980 lb

Dimensions and Weight: controller

250(W) x 550(D) x 500(H) mm, 20kg; 9.8(W) x 21.7(D) x 19.7(H) in., 44.1lb

Footprint

2200(W) x 1250(D) mm; 87(W) x 49.2(D) in; estimate of main unit & computer table

Host Computer: main unit

Pentium 4 (Windows® 2000/XP)

Host Computer: monitor

19-inch LCD flat panel (standard for USA)

kV range

30-160 kV

Max. beam current

600 μA

Max. tube power

20 W

Min. feature recognition

<0.1 μm up to 6W tube power

Geometric magnification

up to 2,400x

Detector

3Mpixel (1,944 x 1,536 pixels)
75 μm pixel size
26 fps update rate

Max. inspection area

510 × 510 mm

Max. board size

580 × 580 mm

Max. tilt angle

60°

Cabinet size

W: 1,819 mm (excl. operator console)
H: 1,998 mm
D: 1,728 mm

Vibration isolation

Anti-vibration mounts (standard)

Monitor

Single 30” or dual 22” display

X-ray safety

1 μSv/hr (to IRR 99)

kV range

30-160 kV

Max. beam current

600 μA

Max. tube power

20 W
