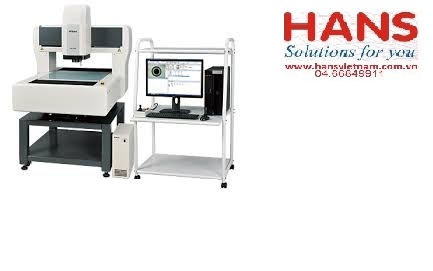

Máy đo quang Video Nikon  iNEXIV VMA-4540V/454

Stroke (X x Y x Z)

450 x 400 x 200 mm

Measurement range with TP
(Touch Probe) ^*1

400 x 400 x 166 mm (TP20)
400 x 400 x 170 mm (TP200)
450 x 400 x 200 mm (with Vision AF)

Measurement range with TP &
MCR20 ^*2

325 x 400 x 166 mm (TP20)
325 x 400 x 170 mm (TP200)
375 x 400 x 200 mm (with Vision AF)

Minimum readout

0.1 µm

Maximum workpiece weight

40 kg

Maximum workpiece weight
(accuracy guaranteed)

20 kg

Maximum permissible error ^*3
(L = Length in mm)

E_UX,MPE E_UY,MPE: 2+6L/1000 µm
E_UXY,MPE: 3+6L/1000 µm
E_UZ,MPE: 3+L/100 µm

Camera

1/3-in. progressive scan b/w camera (standard), 1/3-in. progressive scan color camera (optional)

Working distance

73.5 mm (63 mm with Laser AF)

Magnification

Optical: 0.35 to 3.5x (0.52x to 5.2x high magnification is available as an option)
On screen: 12.6 to 126x with 24-inch WUXGA (1920 x 1200 pixels) monitor

FOV size on stage

13.3 x 10 mm to 1.33 x 1 mm (8.9 x 6.7 mm to 0.89 x 0.67 mm with high-magnification option)

Auto focus

Vision AF and optional Laser AF

Illumination

Contour illumination: White LED diascopic illumination
Surface illumination: White LED episcopic illumination
Oblique illumination: 8-segment white LED ring illumination

Video resolution

640 x 480 (pixels)

Touch probe (optional) ^*1

Renishaw® TP200/TP20

Power source

100V-240 V, 50/60 Hz

Power consumption

5A(100V) - 2.5A(240V)

Dimensions & weight

Main body with table (W x D x H): 1000 x 1340 x 1553 mm, 500 kg
Controller: 145 x 400 x 390 mm, 14 kg

Operational environment

Temperature: 10°C to 35°C
Humidity: 70% or less

Accuracy guaranteed temperature

20°C ±0.5K

Host computer

CPU

Intel® Core™ 2 Duo CPU or faster

Memory

4GB or more

OS

Windows® 7 32bit

Interface

USB2.0 / IEEE1394
