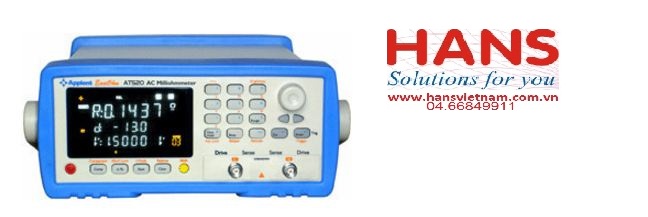

Máy đo trở kháng Battery Applent Instrument AT520

0₫

Nhà Sản Xuất Applent Instruments- Trung Quốc
Mã Sản Phẩm AT520

Hãng sản suất: Applent Instrument – Trung Quốc

Model: AT520

Tình trạng hàng: Hàng mới

Thông số kỹ thuật:

Parameters	R/X/Z/L/θ/V
Accuracy	Resistance: 0.3% Voltage: 0.05% Inductance: 1%
Range	Resistance: 1μΩ-3.2kΩW Voltage: 100μV - 60VDC Inductance: 10nH - 1H
Signal Source	AC 1kHz, open-circuit voltage < 20mV, measurement current: < 10mA
Range	Automatic and manual with 6 ranges
Speed	20 t/s, 6 t/s, 1 t/s
Result Display	Show, ΔABS,Δ%,θ, sorting results
Display Max	Resistance: 32,000, Voltage: 60,000
Adjustment	Short-circuit reset for all range, REL function
Comparator	30 groups record, NG-LO, GD-IN, NG-HI display and output. beep is adjustable
Trigger	Internal, manual, and external
Interface	RS232C Handler interface (PLC)
	Voltage: 198V AC - 240V AC Frequency: 50Hz Power: Max 15VA
	264mm (Width)x107mm (Height)x350mm (Depth) 4kg
	ATL505 Kelvin test wire ATL801 RS232 interface cable
	ATL506A: test probe ATL506: test leads
	Detection of damage test wire, four-color vacuum fluorescent screen VFD display, keypad lock and data hold function

Máy đo trở kháng Battery Applent Instrument AT520

Hãng sản suất: Applent Instrument – Trung Quốc

Model: AT520

Tình trạng hàng: Hàng mới

Thông số kỹ thuật:

Parameters	R/X/Z/L/θ/V
Accuracy	Resistance: 0.3% Voltage: 0.05% Inductance: 1%
Range	Resistance: 1μΩ-3.2kΩW Voltage: 100μV - 60VDC Inductance: 10nH - 1H
Signal Source	AC 1kHz, open-circuit voltage < 20mV, measurement current: < 10mA
Range	Automatic and manual with 6 ranges
Speed	20 t/s, 6 t/s, 1 t/s
Result Display	Show, ΔABS,Δ%,θ, sorting results
Display Max	Resistance: 32,000, Voltage: 60,000
Adjustment	Short-circuit reset for all range, REL function
Comparator	30 groups record, NG-LO, GD-IN, NG-HI display and output. beep is adjustable
Trigger	Internal, manual, and external
Interface	RS232C Handler interface (PLC)
	Voltage: 198V AC - 240V AC Frequency: 50Hz Power: Max 15VA
	264mm (Width)x107mm (Height)x350mm (Depth) 4kg
	ATL505 Kelvin test wire ATL801 RS232 interface cable
	ATL506A: test probe ATL506: test leads
	Detection of damage test wire, four-color vacuum fluorescent screen VFD display, keypad lock and data hold function
