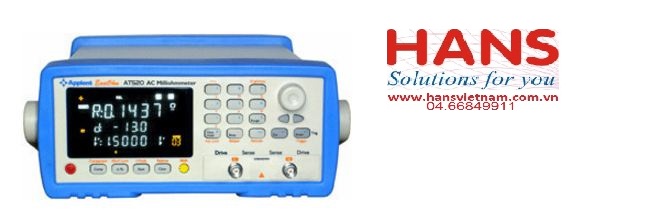

Máy đo trở kháng Battery Applent Instrument AT520SE

Parameters

AC resistance, DC voltage, θ

Accuracy

Resistance:0.5% Voltage: 0.1%

Range

Resistance：10μΩ～3.2kΩ Voltage：1mV~60V_DC

Signal Source

AC 1kHz, open-circuit voltage < 20mV, measurement current: < 10mA

Range

Automatic and manual with 6 ranges

Speed

15 t/s,6 t/s, 1 t/s

Result Display

Show,ΔABS,Δ%,θ,sorting results

Display Max

Resistance:3,200（3^2/3 ） Voltage:6,000

Adjustment

Short-circuit reset for all range, REL function

Comparator

30 groups record, NG-LO, GD-IN, NG-HI display and output. beep is adjustable

Trigger

Internal, manual, external (optional)

Interface

RS-232C

Voltage: 198V AC - 240V AC Frequency: 50Hz Power: Max 15VA

264mm (Width)x107mm (Height)x350mm (Depth) 4kg

ATL505 Kelvin test wire ATL801 RS232 interface cable

ATL506A: test probe ATL506: test leads

Detection of damage test wire, four-color vacuum fluorescent screen VFD display, keypad lock and data hold function
