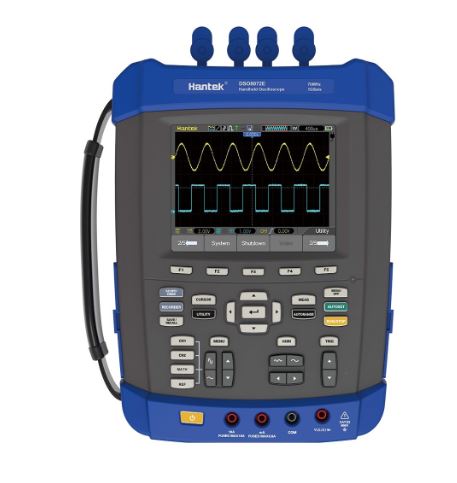

Máy hiện sóng Hantek DSO8102E

0₫

Nhà Sản Xuất Hantek-Trung Quốc
Mã Sản Phẩm DSO8102E

Hans Việt Nam chuyên cung cấp sản phẩm Máy hiện sóng Hantek DSO8102E tại Việt Nam.

Model	DSO8072E	DSO8102E	DSO8152E	DSO8202E
Acquisition
Sample Modes	Real-Time Sample
Acquisition Modes
Normal	Normal data only
Peak Detect	High-frequency and randon glith capture
Average	Wavefom Average, selectable 4,8,16,32,64,128
Inputs
Inputs Coupling	AC, DC, GND
Inputs Impendance	1MΩ±2% ‖20pF±3pF
Probe Attenuation	1X, 10X
Supported Probe Attenuation Factor	1X, 10X, 100X, 1000X
Maximum Input Voltage	CAT I and CAT II: 300VRMS (10×), Installation Category; CAT III: 150VRMS (1×)
Horizontal System
Sample Rate Range	1GS/s
Waveform Interpolation	(sin x)/x
Record Length	2M
SEC/DIV Range	4ns/div~2000s/div, in a 2, 4, 8 sequence		2ns/div~2000s/div, in a 2, 4, 8 sequence
Sample Rate and Delay Time Accuracy	±50ppm over any ≥1ms time interval
Scanning Speed Range	4ns/div to 8ns/div; (-8div x s/div) to 40ms; 20ns/div to 80μs/div;(-8div×s/div) to 40ms; 200μs/div to 40s/div;(-8div×s/div) to 400s;		2ns/div to10ns/div;(-4div×s/div) to 20ms;
Delta Time Measurement Accuracy (Full Bandwidth)	Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns); >16 averages:± (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200
Vertical System
Vertical Resolution	8-bit resolution, all channel sampled simultaneously
Volts Range	2mV/div to 100V/div at input BNC
Bandwidth	70MHz	100MHz	150MHz	200MHz
Rise Time at BNC( typical)	5ns	3.5ns	2.3ns	1.8ns

Quý khách có nhu cầu về Máy hiện sóng Hantek DSO8102E vui lòng liên hệ Hans Việt Nam để được hỗ trợ

Hans Việt Nam chuyên cung cấp sản phẩm Máy hiện sóng Hantek DSO8102E tại Việt Nam.

Model	DSO8072E	DSO8102E	DSO8152E	DSO8202E
Acquisition
Sample Modes	Real-Time Sample
Acquisition Modes
Normal	Normal data only
Peak Detect	High-frequency and randon glith capture
Average	Wavefom Average, selectable 4,8,16,32,64,128
Inputs
Inputs Coupling	AC, DC, GND
Inputs Impendance	1MΩ±2% ‖20pF±3pF
Probe Attenuation	1X, 10X
Supported Probe Attenuation Factor	1X, 10X, 100X, 1000X
Maximum Input Voltage	CAT I and CAT II: 300VRMS (10×), Installation Category; CAT III: 150VRMS (1×)
Horizontal System
Sample Rate Range	1GS/s
Waveform Interpolation	(sin x)/x
Record Length	2M
SEC/DIV Range	4ns/div~2000s/div, in a 2, 4, 8 sequence		2ns/div~2000s/div, in a 2, 4, 8 sequence
Sample Rate and Delay Time Accuracy	±50ppm over any ≥1ms time interval
Scanning Speed Range	4ns/div to 8ns/div; (-8div x s/div) to 40ms; 20ns/div to 80μs/div;(-8div×s/div) to 40ms; 200μs/div to 40s/div;(-8div×s/div) to 400s;		2ns/div to10ns/div;(-4div×s/div) to 20ms;
Delta Time Measurement Accuracy (Full Bandwidth)	Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns); >16 averages:± (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200
Vertical System
Vertical Resolution	8-bit resolution, all channel sampled simultaneously
Volts Range	2mV/div to 100V/div at input BNC
Bandwidth	70MHz	100MHz	150MHz	200MHz
Rise Time at BNC( typical)	5ns	3.5ns	2.3ns	1.8ns

Quý khách có nhu cầu về Máy hiện sóng Hantek DSO8102E vui lòng liên hệ Hans Việt Nam để được hỗ trợ
