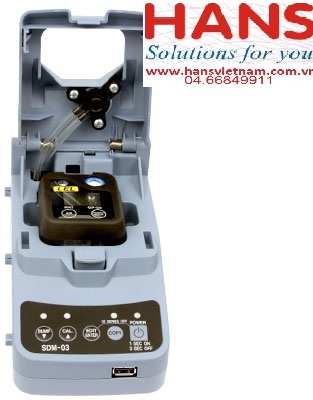

Máy hiệu chuẩn khí RKI SDM-03

Nguồn

• 12 VDC
  LƯU Ý: AC Adapter với 100 - 240 VAC, 50/60 Hz, đầu vào 0.6A và 12 đầu ra VDC, 1.2A

Điều kiện môi trường

• Để sử dụng Trong nhà chỉ
• -10 ° C đến 40 ° C, dưới 80% độ ẩm tương đối, không ngưng tụ

Bộ nhớ

• 200 (độc lập). Không giới hạn với phần mềm

3 cổng

• 1 Hiệu chuẩn khí
• 1 không khí trong lành
• 1 ống xả

Phụ

• AC Adapter
• USB Flash Drive
• Single Module Data Viewer Software
• SDM-03 Docking Station PC Controller Program
• Inlet Air Filter
• Instruction Manual
• 10 Foot Long Exhaust Tube
• One 3 Foot Long Tube for GAS Fitting
• 2 T-Fittings (for PC Controlled Configuration only)
• 10 Foot Long 3/16 Inch Tube for GAS manifold-
• ing (used for PC Controlled Configuration only)
• Check Valve (used for PC Controlled
• Configuration only)
• USB Cable, Type A to Type B

81-0090RK-01

Cylinder, CO 50 ppm / Methane 50% LEL / O2 12 % in N2, 34L

81-0090RK-03

Cylinder, CO 50 ppm / Methane 50% LEL / O2 12 % in N2, 103L

81-0154RK-02

Cylinder, H2S 25 ppm / CO 50 ppm / CH4 50% LEL / O2 12% in N2, 58AL

81-0154RK-04

Cylinder, H2S 25 ppm / CO 50 ppm / CH4 50% LEL / O2 12% in N2, 34AL

81-0158RK-02

Cylinder, H2S 25 ppm / CO 50 ppm / isobutane 50% LEL / O2 12% in N2, 34AL

81-0158RK-04

Cylinder, H2S 25 ppm / CO 50 ppm / isobutane 50% LEL / O2 12% in N2, 58AL

81-1054RK

Regulator, demand flow for 34AL/58AL/103L

81-1055RK

Regulator, demand flow for 17L/34L steel cylinders

82-6050RK

USB Hub, 4 port 2.0 for SDM-2012

82-6051RK

USB Hub, 7 port 2.0 for SDM-2012

71-8007RK

SDM-GX Product CD

Docking Station

81-SDM03-01

Single point calibration station for O3 Series, model SDM-03 with AC Adaptor, flash drive, USB cable, tubing & installation CD

81-SDM03-02

Single point calibration station for O3 Series, model SDM-03 with AC Adaptor, flash drive, USB cable, tubing, installation CD, & demand flow regulator

81-SDM03-03-GP

Single point calibration station for O3 Series, model SDM-03 with AC Adaptor, flash drive, USB cable, tubing, installation CD

81-SDM03-06-GP

Single point calibration station for O3 Series, model SDM-03 with AC Adaptor, flash drive, USB cable, tubing, installation CD, demand flow regulator & 34AL cyl 50% LEL CH4/Air

81-SDM03-03-CO

Single point calibration station for O3 Series, model SDM-03 with AC Adaptor, flash drive, USB cable, tubing, installation CD, demand flow regulator & 103L cyl 50 ppm CO/N2

81-SDM03-06-CO

Single point calibration station for O3 Series, model SDM-03 with AC Adaptor, flash drive, USB cable, tubing, installation CD, demand flow regulator & 34AL cyl 50 ppm CO/N2

81-SDM03-03-HS

Single point calibration station for O3 Series, model SDM-03 with AC Adaptor, flash drive, USB cable, tubing, installation CD, demand flow regulator & 58AL cyl 25 ppm H2S/N2

81-SDM03-06-HS

Single point calibration station for O3 Series, model SDM-03 with AC Adaptor, flash drive, USB cable, tubing, installation CD, demand flow regulator & 34AL cyl 25 ppm H2S/N2
