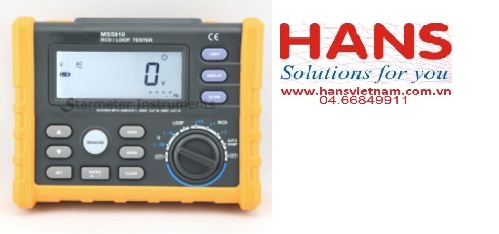

Máy kiểm tra RCD/LOOP Starmeter MS5910

0₫

Nhà Sản Xuất Starmeter-Trung Quốc
Mã Sản Phẩm MS5910

Máy kiểm tra RCD/LOOP Starmeter MS5910

Hãng sản suất: Starmeter – Trung Quốc

Model: MS5910

Tình trạng hàng: Hàng mới

Thông số kỹ thuật:

SPECIFICATIONS	RANGE		ACCURACY	RESOLUTION
Tripping time	x1 IΔN300(slow 500ms) x5 IΔN40ms(slow 150ms)		±3ms	0.1ms
Tripping Current	(0.2-1.1)IΔN		±0.1IΔN	0.5IΔN
Contact Voltage	0~99.9V		±(10%+0.2V)	0.01, 0.1V
Alternating Voltage (UI-N,UL-L,UL-E)	0~440V		±(3%+3V)	1V
Frequency	DC,45~65Hz		±1Hz	1Hz
Loop Resistance(RL)	0.1~2000Ω		±(10%+0.2d)	0.1Ω
RL Current Test	0.51 IΔN		±(10%+10d)	0.5IΔN
Multiplying Power of Measuring Current	x0.5,x1,x5
Current Level(IΔN)	10mA,30mA,100mA 300mA,500mA
Trigger Phase Angle	0°or 180°
FEATURE	Auto Power Off	√
	Display Back Light	√
	Data logging And recall	100groups
	Low Battery indication	√
	USB2.0 Interface	√
GENERAL
Power Supply	6x1.5v AA batteries
Product Size	180mm x 140mm x65mm (7.1” x 5.5” x 2.6”)
Product Weight	950g(2.0lb)
Category	CE ETL CAT.Ⅲ300V RoHS

Máy kiểm tra RCD/LOOP Starmeter MS5910

Hãng sản suất: Starmeter – Trung Quốc

Model: MS5910

Tình trạng hàng: Hàng mới

Thông số kỹ thuật:

SPECIFICATIONS	RANGE		ACCURACY	RESOLUTION
Tripping time	x1 IΔN300(slow 500ms) x5 IΔN40ms(slow 150ms)		±3ms	0.1ms
Tripping Current	(0.2-1.1)IΔN		±0.1IΔN	0.5IΔN
Contact Voltage	0~99.9V		±(10%+0.2V)	0.01, 0.1V
Alternating Voltage (UI-N,UL-L,UL-E)	0~440V		±(3%+3V)	1V
Frequency	DC,45~65Hz		±1Hz	1Hz
Loop Resistance(RL)	0.1~2000Ω		±(10%+0.2d)	0.1Ω
RL Current Test	0.51 IΔN		±(10%+10d)	0.5IΔN
Multiplying Power of Measuring Current	x0.5,x1,x5
Current Level(IΔN)	10mA,30mA,100mA 300mA,500mA
Trigger Phase Angle	0°or 180°
FEATURE	Auto Power Off	√
	Display Back Light	√
	Data logging And recall	100groups
	Low Battery indication	√
	USB2.0 Interface	√
GENERAL
Power Supply	6x1.5v AA batteries
Product Size	180mm x 140mm x65mm (7.1” x 5.5” x 2.6”)
Product Weight	950g(2.0lb)
Category	CE ETL CAT.Ⅲ300V RoHS
