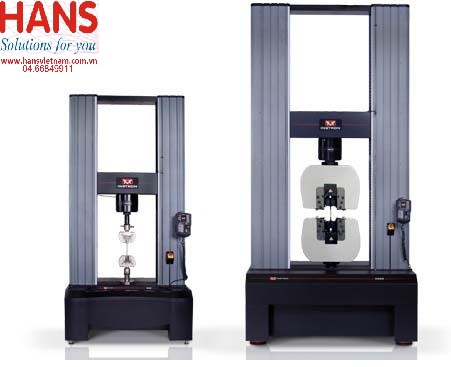

Máy kiểm tra sức bền vật liệu vạn năng hai cột để sàn Instron 5980 Advanced

Máy kiểm tra sức bền vật liệu vạn năng hai cột để sàn Instron 5980 Advanced

Model: 5980 Advanced

Hãng sản xuất: Instron

Thông số kỹ thuật:

Load measurement accuracy: +/- 0.5% of reading down to 1/1000 of load cell capacity option (2580 Series load cells)

Up to 2.5 kHz data acquisition rate option simultaneous on load, extension, and strain channels

Speed range of 0.00005 to 1016 mm/min (0.000002 in/min to 40in/min), depending on model

Lower base height for convenient access to the working test space

Customizable Control Panel

Compatible with Bluehill^® Software

Automatic transducer recognition for load cells and extensometers

Extra height and width options available

Range of Models

5982:

100 kN (22,500 lbf) capacity

1430 mm (56.3 in) vertical test space*

1930 mm (76 in) vertical test space (Extra-height model)

5984:

150 kN (33,750 lbf) capacity

1430 mm (56.3 in) vertical test space*

1930 mm (76.0 in) vertical test space (Extra-height model)

5985:

250 kN (56,200 lbf) capacity

1430 mm (56.3 in) vertical test space*

1930 mm (76.0 in) vertical test space (Extra-height model)

5988:

400 kN (89,700 lbf) capacity

2050 mm (80.7 in) vertical test space *

5989:

600 kN (135,000 lbf) capacity

2000 mm (78.8 in) vertical test space *

Total vertical test space is the distance from the top surface of the base platen to the bottom surface of the moving crosshead, excluding load cell, grips, and fixtures.

Note: specifications are subject to change without notice.
