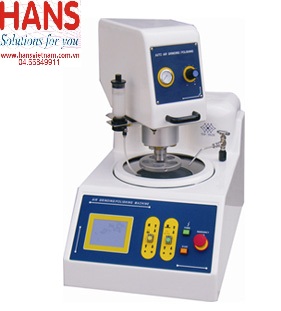

Máy mài và đánh bóng mẫu Toptech PLATO P25FRS-1-R3

Model

P25FRS-1-R3

P25FRS-1-R5

No. Of grinding plate

1

Grinding method

Automatic grinding

Grinding plate diameter

φ250

Grinding rotational speed

0~600rpm

Grinding Horsepower

1HP

Cooling system

1

Machine type

Table-Top

Machine body

FRP Machine envelope

No. of grinding samples

R3---3 Pieces ， R5---5 Pieces

Sample size

φ32mm(special size：φ20, φ25, φ30, φ40 , Other Size)

Air pressure settings

2.3~8kg/cm2

Grinding Head Rotational Speed

80 rpm fixed

Grinding Head Pressing Style

Can select central pressure or individual pressure

Operation Interface

LCD colored Touch-Screen Monitor: Able To Set Grinding speed, time, and rotational direction; Water Trough Cleaning Function

Display

1.Rotational Speed 2. Time Countdown 3.Control Functions

Central Pressure Adjusting Range

Max:6-25 Kg

Individual Pressure Adjusting Range

1-6Kg (Special option function: pressure range can be specified)

Memory Functions

Grinding rotational speed and time can be set, 100 sets of memory module functions

Grinding Time

Adjustable range:0 – 60,000 sec; Display countdown time

Grinding Head Turning Angle

Grinding rotational direction can be adjusted within safety restriction range

Grinding Direction

Clockwise and anticlockwise direction can be selected

Sample chuck

Sample clamp fast replacement(quick release function)

Machine Dimension

900×520×750(H)mm

Power Supply

AC220V 1φor AC110V 1φ

Weight

80kg

Standard Accessories

Water outlet pipe:1.5M

Anti-splash cover 2pcs.

Small hose clip 2 pcs

Large hose clip 4 pcs

Leveler

S080102

S090102

Optional Function

Touch-screen monitor can display & set grinding pressure(pressure display can be selected in Kg or Lb)(touch-screen monitor is the outboard control interface)
