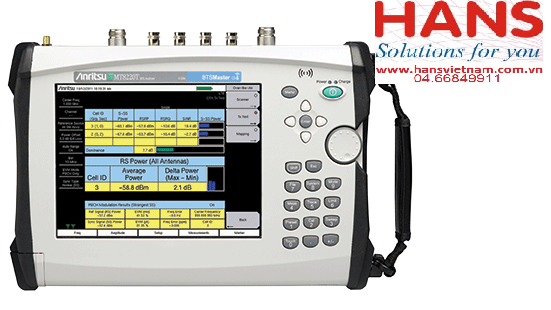

Máy phân tích trạm BTS Anritsu MT8220T (400 MHz ~ 6 GHz)

Máy phân tích trạm BTS_ Anritsu_ MT8220T ( 400 MHz ~ 6 GHz)

Hãng sản suất: ANRITSU-NHẬT BẢN

Model: MT8212E

Tình trạng hàng: Hàng mới

Thông số kỹ thuật:

2-port Cable and Antenna Analyzer 400 MHz to 6 GHz

Spectrum Analyzer 150 kHz to 7.1 GHz

Power Meter 10 MHz to 7.1 GHz

GPS Receiver with Antenna

Bias Tee

High Accuracy Power Meter (up to 26 GHz with external sensor)

Interference Analyzer with Mapping

Channel Scanner

Vector Signal Generator 400 MHz to 6 GHz

Signal Analyzers

LTE/LTE-A FDD/TDD, W-CDMA/HSPA+, GSM/GPRS/EDGE,

TD-SCDMA/HSPA+

CDMA, EV-DO

Fixed and Mobile WiMAX

CPRI RF Analyzer

Cable and Antenna Analyzer Measurements

• VSWR, Return Loss, Cable Loss, Distance-to-Fault (DTF) Return Loss, DTF VSWR, 1/2-port Phase, 2-port Gain, Smith Chart

Spectrum Analyzer Measurements

• Field Strength, Occupied Bandwidth, Channel Power, ACPR, AM/FM/SSB Demodulation, C/I, Gated Sweep

Interference Analyzer Measurements

• Spectrogram, Signal Strength Meter, Received Signal Strength Indicator (RSSI), Interference Mapping

Channel Scanner Capability

• Scan 20 channels at once by frequency or channel number, up to 1200 channels, auto-save with GPS tagging

Vector Signal Generator Capability

• Generate up to 2 modulated tones, up to 10 MHz bandwidth plus noise
• Check BTS receiver sensitivity, adjacent channel selectivity, blocking, intermodulation rejection

Signal Quality Analyzers Measurements

• RF Quality Measurements, Modulation Quality Measurements, Over-the-Air Quality Measurements, Pass/Fail Testing
• All 2G/3G/4G technologies supported
