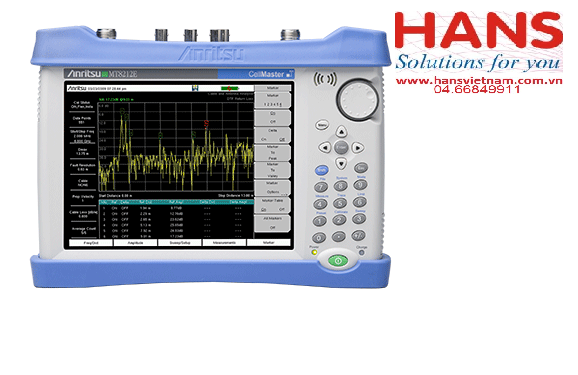

Máy phân tích trạm BTS cầm tay Anritsu MT8212E (2G,3G,4G, 2Mhz ~ 4 Ghz)

Máy phân tích trạm BTS cầm tay Anritsu MT8212E (2G,3G,4G, 2Mhz ~ 4 Ghz)

Hãng sản suất: ANRITSU-NHẬT BẢN

Model: MT8212E

Tình trạng hàng: Hàng mới

30 Analyzers in one
Cable and Antenna Analyzer: 2 MHz – 4 GHz
Return Loss, Cable Loss, VSWR, Distance-To-Fault
Phase, 2-port Transmission Measurements
Spectrum Analyzer: 9 kHz – 4 GHz
Interference Analyzer with Interference Mapping, GPS
High Accuracy Power Meter
3GPP, including LTE/LTE-A, 3GPP2 and WiMAX signal analyzers
ISDB-T and DVB-T/H signal analyzers
Indoor and outdoor coverage mapping
Easy-to-use Touch screen
USB connectivity

Thông số kỹ thuật:

Cable and Antenna Analyzer Highlights

• Measurements: RL, VSWR, Cable Loss, DTF, Phase
• 2-port Transmission Measurement: High/Low Power
• Sweep Speed: 1 msec/data point, typical
• Display : Single or Dual Measurement Touchscreen
• Calibration: OSL, InstaCal™, and FlexCal™
• Bias Tee: 32 V internal

Spectrum and Interference Analyzer Highlights

• Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Coverage Mapping
• Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID, Interference Mapping
• Dynamic Range: > 102 dB in 1 Hz RBW
• DANL: -162 dBm in 1 Hz RBW
• Phase Noise: -100 dBc/Hz max @ 10 kHz offset at 1 GHz
• Frequency Accuracy: < ±50 ppb with GPS On

Signal Analyzer Highlights

• 3GPP Signal Analyzers GSM/EDGE, W-CDMA/HSPA+, TD-SCDMA/HSPA+, LTE/LTE-A, TD-LTE/LTE-A
• 3GPP2 Signal Analyzers cdmaONE/CDMA2000 1X, CDMA2000 1xEV-DO
• IEEE 802.16 Signal Analyzers Fixed WiMAX, Mobile WiMAX
• Digital TV ISDB-T, DVB-T/H Signal Analyzer
• 20 MHz demodulation bandwidth
