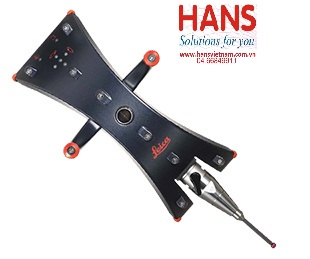

Máy quét 3D Hexagon Leica T-Probe

Máy quét 3D Hexagon Leica T-Probe

Model: Leica T-Probe

Hãng sản xuất: Hexagon

Thông số kỹ thuật:

PowerLock: For the first time in the history of laser trackers, the laser beam moves to the user, not the other way around.

Smaller, lighter and more convenient than comparable solutions

Largest armless operation measurement volume of up to 60 m (196 ft)*, reducing inspections by min. 50%

Wider acceptance angle than any comparable system: pitch ±45°, yaw ±45°, roll 360°

Battery-powered for wireless operation and increased productivity

Extended battery life with flexible “sleep” mode

Automated probe identification reduces operator errors

User-asignable multi-function buttons for individual application functionality for all buttons

One-hand operation with left/right-hand functionality

Renishaw-compatible with a wide range of styli available, incl. 100 mm, 200 mm and longer

Visual feedback for battery, in-view and in-distance status and for process information

Acoustic process information feedback

Insensitive to environmental light

Point rate output of 1,000 points per second

Tracking speed > 1 m/s

Precise quick release and automated stylus recognition for exchanging styli without calibration

Tags: Máy đo 3 chiều
