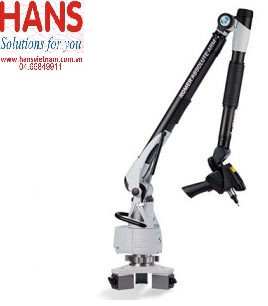

Máy quét 3D Hexagon ROMER with integrated scanner

Máy quét 3D Hexagon ROMER with integrated scanner

Model: ROMER with integrated scanner

Hãng sản xuất: Hexagon

Thông số kỹ thuật:

Measurement Volume
Available in six sizes providing measurement volumes with diameters between 2.0 m and 4.5 m.

Automatic Probe Recognition
Swap probes at any time without the need to recalibrate – repeatable mounting allows probe changes on the fly according to measurement needs.

Robust Feedback
Instant visual, acoustic and haptic feedback allows the system to be used accurately and efficiently in even the harshest industrial environments.

Total System Certification
Full B89.4.22 certification for the entire arm and scanner system, with additional certification according to VDI/VDE 2617-9 also available.

Absolute Encoders
Referencing and warm-up time is a thing of the past – just switch on and start measuring.

Arm Balance
Optimised design echoing the uneven arm-length ratio typical in industrial robot design makes the arm lighter and easier to use.

Zero G
Counterbalance system minimises torque in the base of the arm, allowing effortless user movement, greater accuracy and a wealth of mounting options, including lightweight tripods and magnetic and vacuum bases.

SmartLock
Lock the arm safely in the rest position when not in use, or conveniently fix the arm in any intermediate position during measurement.

Carbon-fibre Structure
High-tech materials make arm measurement secure and thermally stable under any environmental condition.

SpinGrip and SpinKnob
Rotating low-friction handling grips improve ergonomics, minimise user fatigue, provide thermal stability and maximise accuracy.

Ergonomics
Wrist structure, hand grip design and intelligent button positioning allow for total control over arm alignment and adjustment.

RDS
Proprietary software featuring SMART – Self-Monitoring Analysis and Reporting Technology – that manages the arm in the field by monitoring diagnostics including shocks and temperature.

RDS Mobile
Compatible with all WiFi enabled systems, the RDS Mobile app allows users to connect directly from a mobile device to access simple probing and scanning functions and diagnostic operations.

Feature Packs
Easily interchangeable Feature Packs enhance functionality for all arm models, from WiFi connection and laser scanning to full battery-powered operation.

Compatibility
Works with all major metrology software packages

Tags: Máy đo 3 chiều
