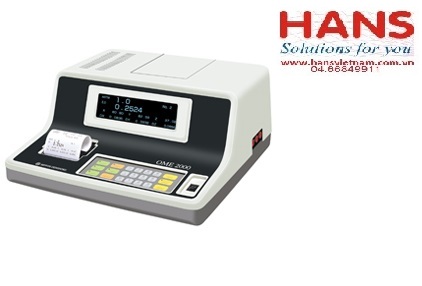

MÁY SO MÀU QUANG PHỔ NIPPON DENSHOKU OME 2000

Dimensions

W 400mm x D 400mm x H 210mm

Weight

Approx. 12kg

Power supply

100V to 240V AC, 50 / 60Hz

Power consumption

120VA

Light source

Halogen lamp, 12V 2A

Measuring items

ASTM color, Saybolt color,
Harzen color number (APHA), Gardner color, XYZ,
L*a*b*

Measuring range

ASTM : 0 to 8.0, Saybolt : 30 to -16,
APHA (Pt-Co) : 0~500, Gardner : No.1 to No.18

Measuring area

16mmΦ (luminous flux aperture of transmittance)

Related standards

ASTM, Saybolt, APHA (Pt-Co), Gardner : JIS K 0071
ASTM, Saybolt : JIS K 2580
APHA (Pt-Co) : ISO 2211, ISO 6271
Gardner : ISO 4630, ASTM D 6045-95,
ASTM D 1209-84, ASTM D 156-94,
ASTM D 1500-91, ASTM D 1544-80

Measurement accuracy

ASTM 1.0 : CV value within 3%
Saybolt 30 : CV value within 2%
