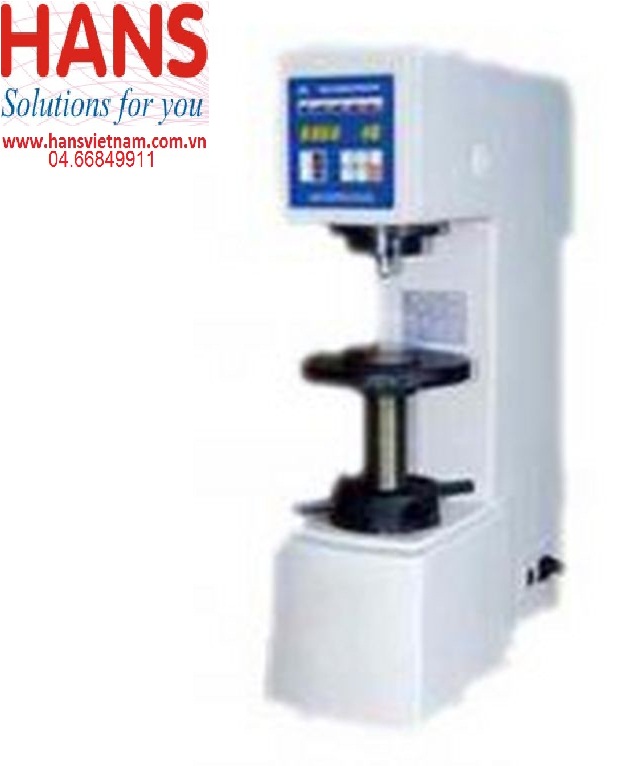

Máy thử độ cứng BRINELL HUATEC DHB3000

0₫

Nhà Sản Xuất HUATEC
Mã Sản Phẩm DHB3000

Máy thử độ cứng BRINELL HUATEC DHB3000

Model: DHB3000

Hãng sản xuất: HUATEC

Thông số kỹ thuật:

Thông số

Testing range:( 8～650)HBW
Test Force:612.9N(62.5Kgf), 980N(100Kgf), 1226N(125Kgf), 1839N(187.5Kgf), 2452N(250Kgf), 4900N(500Kgf), 7355N(750Kgf), 9800N(1000Kgf), 14700N(1500Kgf), 29400N(3000kgf)
Accuracy of Displayed Hardness Value
HardnessRange(HBW)	Max tolerance％	Repetition％
≤ 125	± 3	≤ 3.5
125＜HBW≤225	± 2.5	≤ 3.0
＞ 225	± 2.0	≤ 2.5
Max, Height of the speciment: 225mm
Max Distance from the indenter center to the instrument panel: 135mm
Magnification of the microscope: 20X
Min Reading Grade of the Drum wheel of the microscope: 0.005mm
Power supply and Voltage: AC220V/50-60Hz
Main Accessories
Tables:Large, Small and V-shaped each
Hard Alloyed Steel Ball Indenters: ￠2.5mm,￠5mm, and ￠10mm each.
One Microscope: 20X
Two Standard Hardness Blocks

Máy thử độ cứng BRINELL HUATEC DHB3000

Model: DHB3000

Hãng sản xuất: HUATEC

Thông số kỹ thuật:

Thông số

Testing range:( 8～650)HBW
Test Force:612.9N(62.5Kgf), 980N(100Kgf), 1226N(125Kgf), 1839N(187.5Kgf), 2452N(250Kgf), 4900N(500Kgf), 7355N(750Kgf), 9800N(1000Kgf), 14700N(1500Kgf), 29400N(3000kgf)
Accuracy of Displayed Hardness Value
HardnessRange(HBW)	Max tolerance％	Repetition％
≤ 125	± 3	≤ 3.5
125＜HBW≤225	± 2.5	≤ 3.0
＞ 225	± 2.0	≤ 2.5
Max, Height of the speciment: 225mm
Max Distance from the indenter center to the instrument panel: 135mm
Magnification of the microscope: 20X
Min Reading Grade of the Drum wheel of the microscope: 0.005mm
Power supply and Voltage: AC220V/50-60Hz
Main Accessories
Tables:Large, Small and V-shaped each
Hard Alloyed Steel Ball Indenters: ￠2.5mm,￠5mm, and ￠10mm each.
One Microscope: 20X
Two Standard Hardness Blocks
