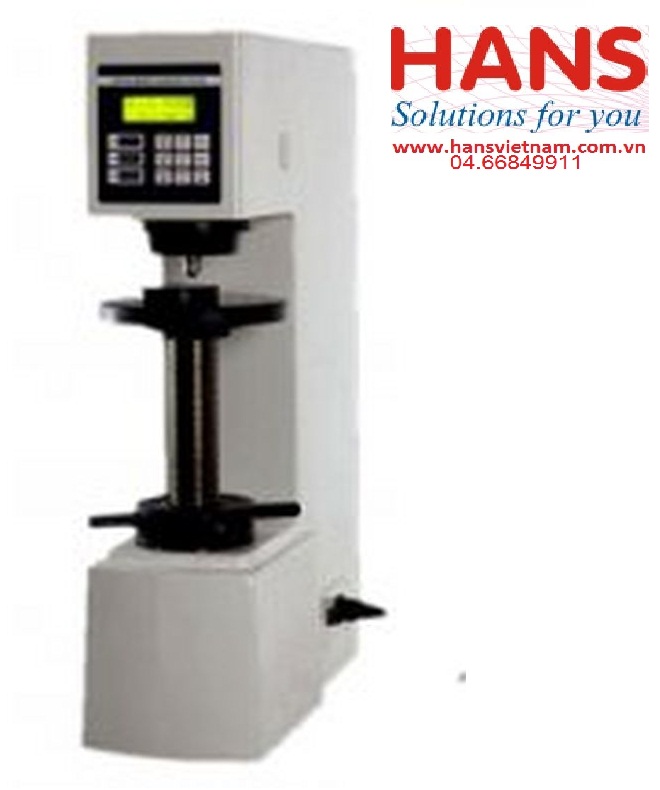

Máy thử độ cứng BRINELL HUATEC MHB-3000
Model: MHB-3000
Hãng sản xuất: HUATEC
Thông số kỹ thuật:
Thông số
Testing Range:(8~650)HBW Test Force:612.9N(62.5kg), 980N(100kg), 1226N(125kg), 1839N(187.5kg), 2452(250kg), 4900N(500kg), 7355N(750kg), 9800N(1000kg), 14700N(1500kg), 29400N(3000kg) Max Height of the Specimen:225mm Max Distance from the lndenter Center to the Instrument Panel:135mm Amplification of the Digital Micro Eyepiece:15×(30×) Min.Graduation Value of the Drum Wheel of the Digital Micro Eyepece:0.0025mm Powerm Voltage:AC220V 50/60Hz Main Accessories: Testing Table : Large, Small and V-Shaped each 1 PC Hard Alloyed Steel Ball Indenters:Φ2.5mm, Φ5mm, Φ10mm, each 1PC One 15× Digital Micro Eyepec Two Standard Hardness Blocks (HBW 3000/10 150-250)(HBW 750/5 75-125) Weight 160kg (Gross Weight) 130kg(Net Weight) Package Dimensions: 893×720×470(L×W×H)
Tags:Thiết bị kiểm tra độ cứng, máy đo độ cứng, hardness tester, đồng hồ đo độ cứng
