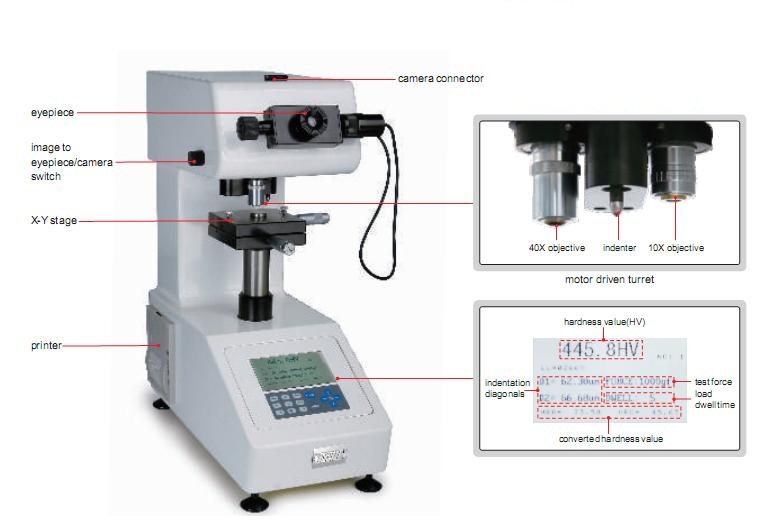

Máy thử độ cứng INSIZE CODE ISH-TDV2000

Máy thử độ cứng INSIZE CODE ISH-TDV2000

Model: ISH-TDV2000

Test  force: 0.01, 0   .025, 0   .05, 0   . 1 , 0   .2, 0   .3, 0   .5,   1,  2kgf

Vickers scales: HV0.01,  HV0.025,  HV0.05,  HV0.1,

                        HV0.2,  HV0.3,  HV0.5,  HV1,  HV2

Stage elevation: manual

Load  control: automatic  (load/dwell/unload)

Load dwe ll time: 5-60second  (5  second  increment)

Objective: 10X, 40X

Eyepiece:  15X

Total magnification: 150X  (for  observation)

                          600X  (for measurement)

Max. workpiece height: 85mm

Max. workpiece depth: 85mm (from  the  center of  indenter)

X Y  stage: dimensions: 100×100mm

                   travel  range: 25×25mm

                   graduation: 0.01mm

Data output: RS232C

Dimension: 540×500×640mm

Weight: 50kg

STANDARD  DELIVERY

Main unit: 1pc

10X, 40X objective: 1pc  of  each

Micro Vickers  indenter: 1pc

Micro Vickers  test block: 1pc  of  each

(700HV1, 400HV0.2)

Slice holder: 1pc

Vice: 1pc

Cylinder holder: 1pc

Level: 1pc
