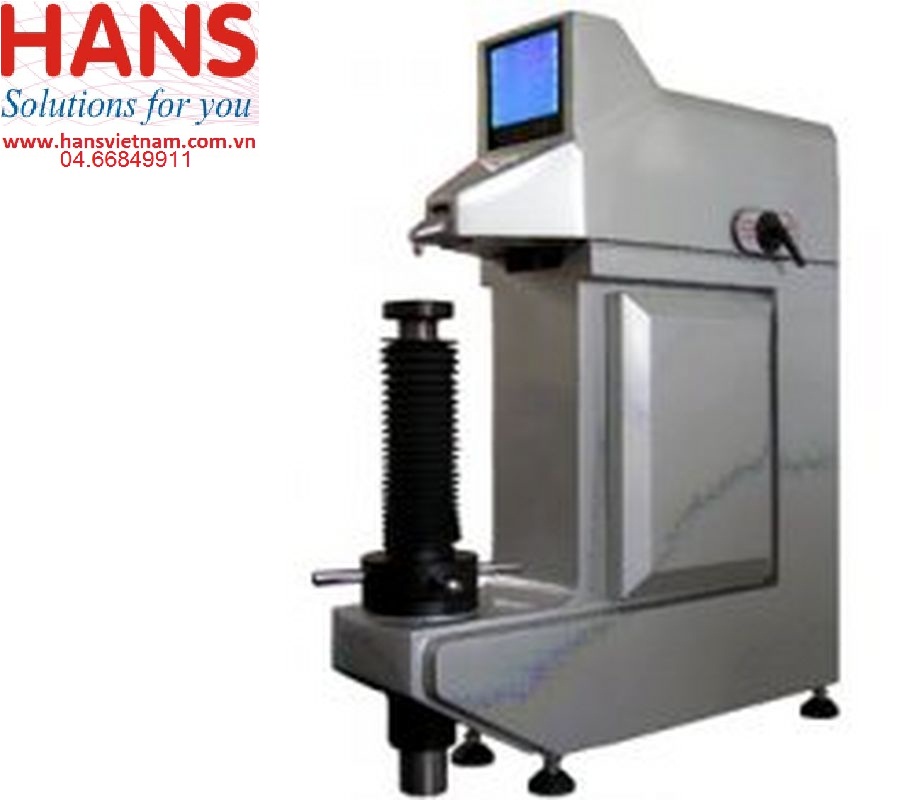

Máy thử độ cứng Rockwell HUATEC HR3200

Thông số

Preload:29.4N(3kgf), 98.1N (10kgf)

Total test force:147.1N(15kgf), 294.3N(30kgf), 441.3N(45kgf),

588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)

Scales:HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X,

HR30X, HR45X, HR15Y, HR30Y, HR45Y

HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR,

HRS, HRV

Load dwell duration: 2～50s, can be set and stored

Resolution :0.1HR

Display:High definition backlight LCD

Operation:Menu selectable, Membrane keypad

Upper/lower limits setting & alarming

Data statistics: Avg., Max., Min., S, R available

Curved surface correcting automatically

Memory: Max 400 items of test results stored automatically

Data output: RS-232 to micro printer, USB port to external PC

Testing space:260mm in vertical, 150mm in horizontal

Dimensions: 710mm×210mm×830mm

Power supply:AC, 220V/110V, 50～60Hz, 4A

Net weight:110kg
