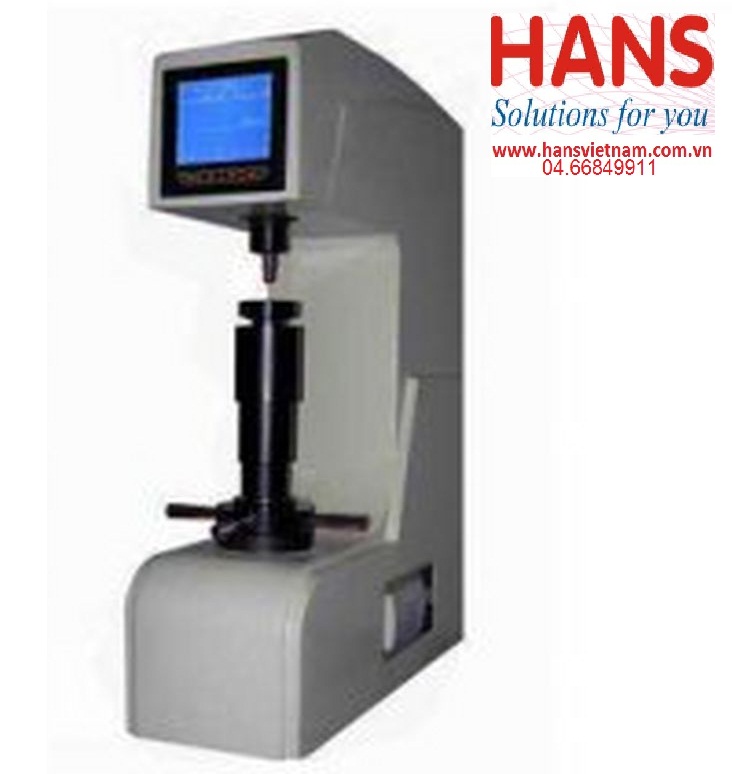

Máy thử độ cứng Rockwell HUATEC HR45P

Thông số

Total test force:147.1N(15kgf), 294.3N(30kgf), 441.3N(45kgf)

Scales:HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y

Load cycle: 3～8s

Load dwell duration: 2～50s, can be set

Resolution :0.1HR

Display:High definition backlight LCD

Operation:Menu selectable, Membrane keypad

Upper/lower limits setting & alarming

Data statistics: Avg., Max., Min., S, R available

Curved surface correcting automatically

Memory: Max 500 items of test results stored automatically

Data output: USB port to external PC

With integrated micro-printer and printing measuring results automatically

Testing space:200mm in vertical, 165mm in horizontal

Dimensions: 550mm×200mm×720mm

Power supply: AC, 220V/110V, 50～60Hz, 4A

Net weight: 90kg
