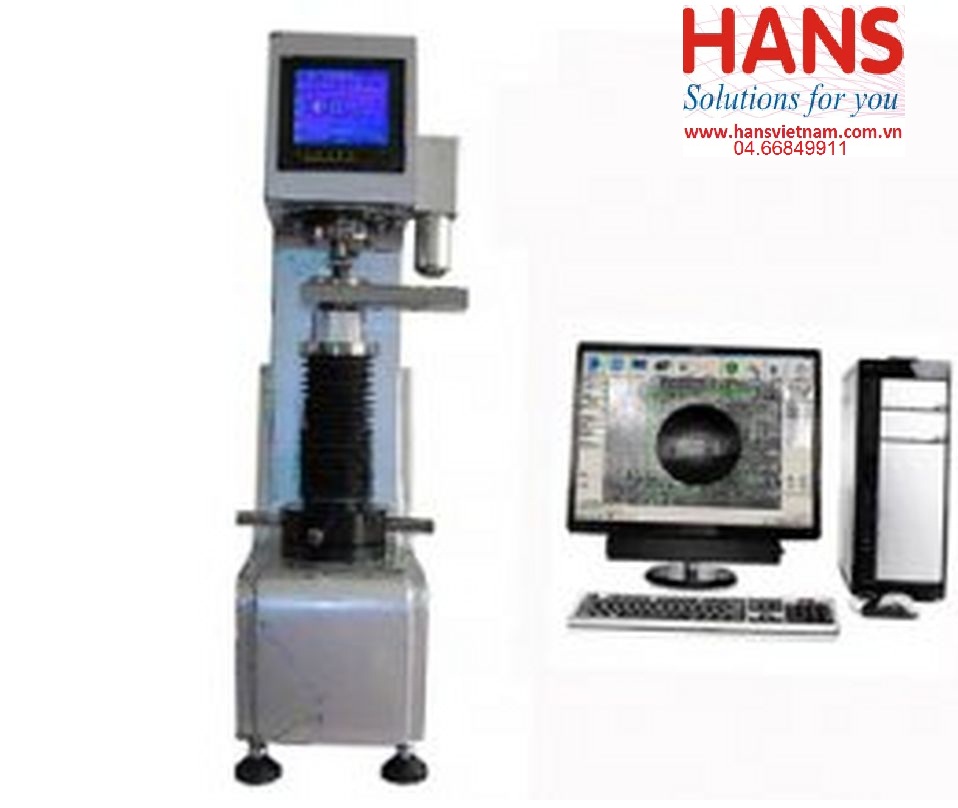

Máy thử độ cứng tự động BRINELL HUATEC HBA-3000A
Model: HBA-3000A
Hãng sản xuất: HUATEC
Xuất xứ: Trung Quốc
Thông số kỹ thuật:
Thông số
Technical data: Loads:3000kgf (29400N), 1500Kgf (14700N), 1000Kgf (9800N), 750Kgf(7355N), 500Kgf (4900N), 250Kgf (2452N), 187.5Kgf (1839N), 125Kgf (1226N), 100Kgf (980N), 62.5Kgf(612.9N) Load dwell duration: 2s~99s, can be set and stored Tungsten Carbide Ball indenter: 10mm Measuring range: 3.18HBW~658HBW Accuracy of indention measureing: ±0.5% Accuracy of Brinell Hardness Value: Hardness Range(HBW) Error (%) Repeatability(%) ≤ 125 ± 2.5 ≤3.0 125<HBW≤225 ± 2.0 ≤2.5 > 225 ±1.5 ≤2.0 Max measurable height: 200 mm Max measurable depth: 140 mm Dimensions: 530mm×260mm×750mm Power supply: 220/110 V, 50/60 Hz, 4A Weight: 120kg Standard blocks: 125-350HBW10/3000, 125-350HBW10/1000
Tags:Thiết bị kiểm tra độ cứng, máy đo độ cứng, hardness tester, đồng hồ đo độ cứng
