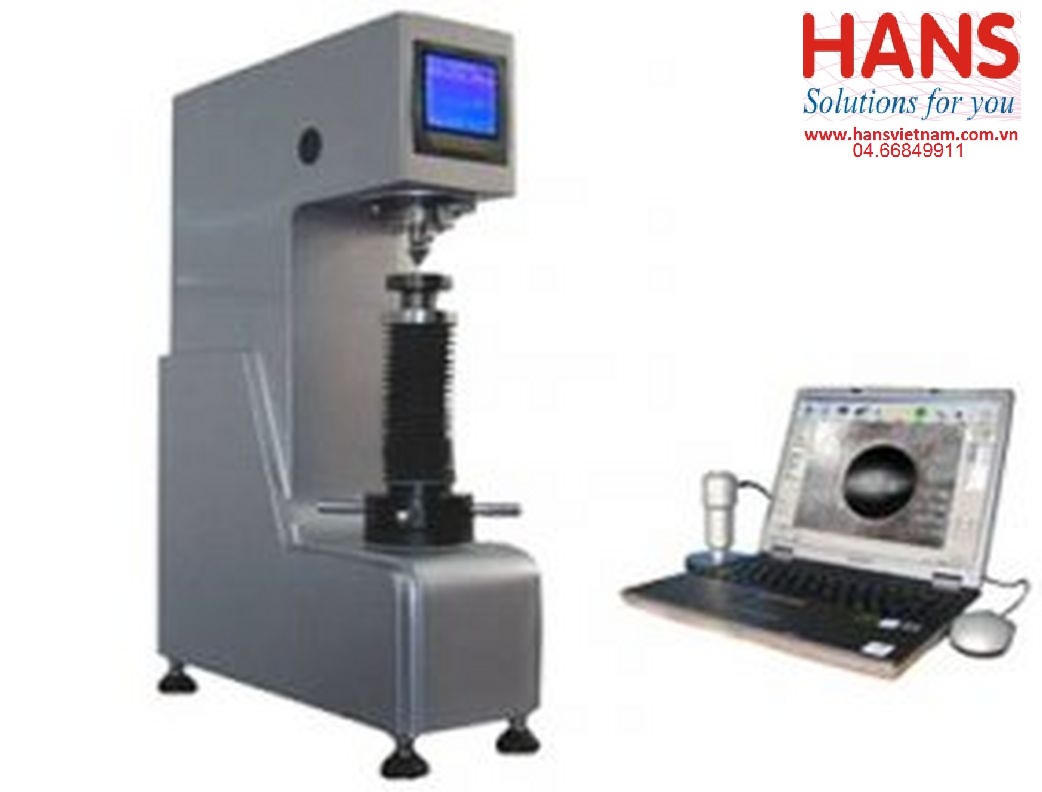

Máy thử độ cứng tự động BRINELL HUATEC HBA-3000S

0₫

Nhà Sản Xuất HUATEC
Mã Sản Phẩm HBA-3000S

Máy thử độ cứng tự động BRINELL HUATEC HBA-3000S

Model: HBA-3000S

Hãng sản xuất: HUATEC

Xuất xứ: Trung Quốc

Thông số kỹ thuật:

Thông số

Loads:3000kgf (29400N), 1500Kgf (14700N), 1000Kgf (9800N), 750Kgf(7355N), 500Kgf (4900N), 250Kgf (2452N), 187.5Kgf (1839N), 125Kgf (1226N), 100Kgf (980N), 62.5Kgf(612.9N)
Load dwell duration: 2s～99s, can be set and stored
Tungsten Carbide Ball indenter: 10mm, 5mm, 2.5mm
Measuring range: 3.18HBW~658HBW
Accuracy of indention measureing: ±0.5%
Accuracy of Brinell Hardness Value:
HardnessRange(HBW)	Error (％)	Repeatability(％)
≤ 125	± 2.5	≤ 3.0
125 < HBW ≤ 225	± 2.0	≤ 2.5
> 225	± 1.5	≤ 2.0
Max measurable height: 230 mm
Max measurable depth: 140 mm
Dimensions: 530mm×260mm×750mm
Power supply: 220/110 V, 50/60 Hz, 4A
Weight: 110kg
Standard blocks: 125-350HBW10/3000, 125-350HBW10/1000
